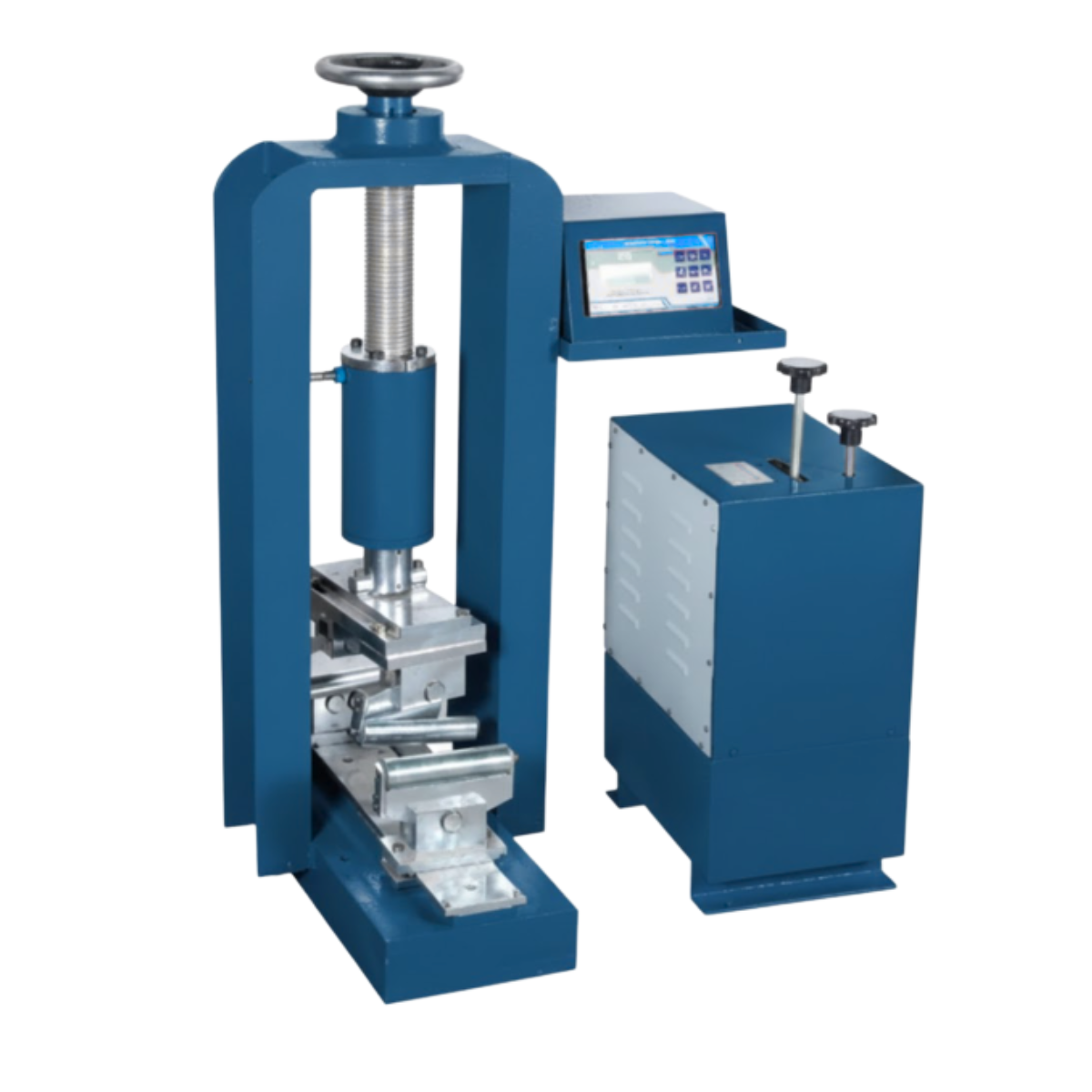

HAND OPERATED FLEXURAL TESTING MACHINE 250 KN AZA1136 - Image 1
Click to enlarge
FLEXURE TESTING MACHINE AZA1135
FLEXURE TESTING MACHINE AZA1135
Back to products
FLEXURAL FRAME 100 KN AZA1137
FLEXURAL FRAME 100 KN AZA1137

HAND OPERATED FLEXURAL TESTING MACHINE 250 KN AZA1136

The Azalab AZA1136 Hand Operated Flexural Testing Machine (250 kN) is a robust, precision-built system designed for the accurate determination of flexural strength in concrete beams. It is ideal for construction sites, material testing laboratories, RMC plants, government QC facilities, and academic institutions.

With its manually operated hydraulic system, durable steel frame, and reliable bourdon-type gauge, this machine ensures accurate and repeatable flexural strength measurements while operating independently of electrical power.

The unit incorporates a heavy-duty lead screw for daylight adjustment, enabling smooth accommodation of various beam sizes. Its retraction spring assures quick piston return, improving testing efficiency.

Key Features

  • Hand-operated flexural testing machine – 250 kN frame strength
  • Ideal for 100×100×500 mm and 150×150×700 mm concrete beams
  • Load range: 0–100 kN with 0.5 kN least count
  • Manual hydraulic operation with lead screw adjustment
  • Complies with IS 516, BS 1881, ASTM C78
  • Large 200 mm bourdon-type pressure gauge
  • Lightweight, portable, and easy to operate
  • Built-in retraction spring for automatic piston reset
  • Available exclusively from Azalab
Enquiry on WhatsApp
SKU: AZA 1136 Category:
Description

Description

Applications

  • Civil construction quality control

  • Ready-mix concrete (RMC) batch monitoring

  • Government testing laboratories

  • Research and academic institutions

  • Flexural testing of standard beam specimens

This unit is exclusively designed for beam flexural testing and does not support cube or cylindrical samples.

Specifications

Parameter Details
Ram Diameter 82 mm
Ram Travel 50 mm
Pressure Gauge Diameter 200 mm
Load Capacity (Gauge) 100 kN
Least Count 0.5 kN
Maximum Pressure 200 kg/cm²
Platen Diameter Not applicable
Horizontal Clearance 210 mm
Vertical Daylight 160 mm (adjustable)
Load Frame Height 850 mm
Load Frame Weight 150 kg
Lead Screw Yes
Specimen Testing Capability Flexural beams: 100×100×500 mm & 150×150×700 mm
Cube Testing No
Cylinder Testing No

Available Model

Model No. Description Operation
AZA1136 Flexural Testing Machine – 250 kN Class Hand Operated

Frequently Asked Questions (FAQ)

Q1. What specimens can AZA1136 test?
It is designed exclusively for testing flexural strength of beams sized 100×100×500 mm and 150×150×700 mm.

Q2. Does this machine require electricity?
No. It is fully hand operated and ideal for sites without electrical access.

Q3. What is the maximum load capacity?
The gauge measures up to 100 kN with a least count of 0.5 kN, suitable for concrete beam flexure testing.

Q4. Which standards does it comply with?
It conforms to IS 516, BS 1881, and ASTM C78.

Q5. How is calibration handled?
The bourdon tube gauge is calibrated using certified proving rings to ensure traceable accuracy.

Q6. Can I test concrete cubes or cylinders?
No. This model is strictly for flexural beam tests.

Q7. How can I purchase the AZA1136?
It is available through Azalab with nationwide delivery and full technical support.

Additional information

Additional information

Ram Diameter

82 mm
Ram Travel

50 mm
Pressure Gauge Diameter

200 mm
Load Capacity (Gauge)

100 kN
