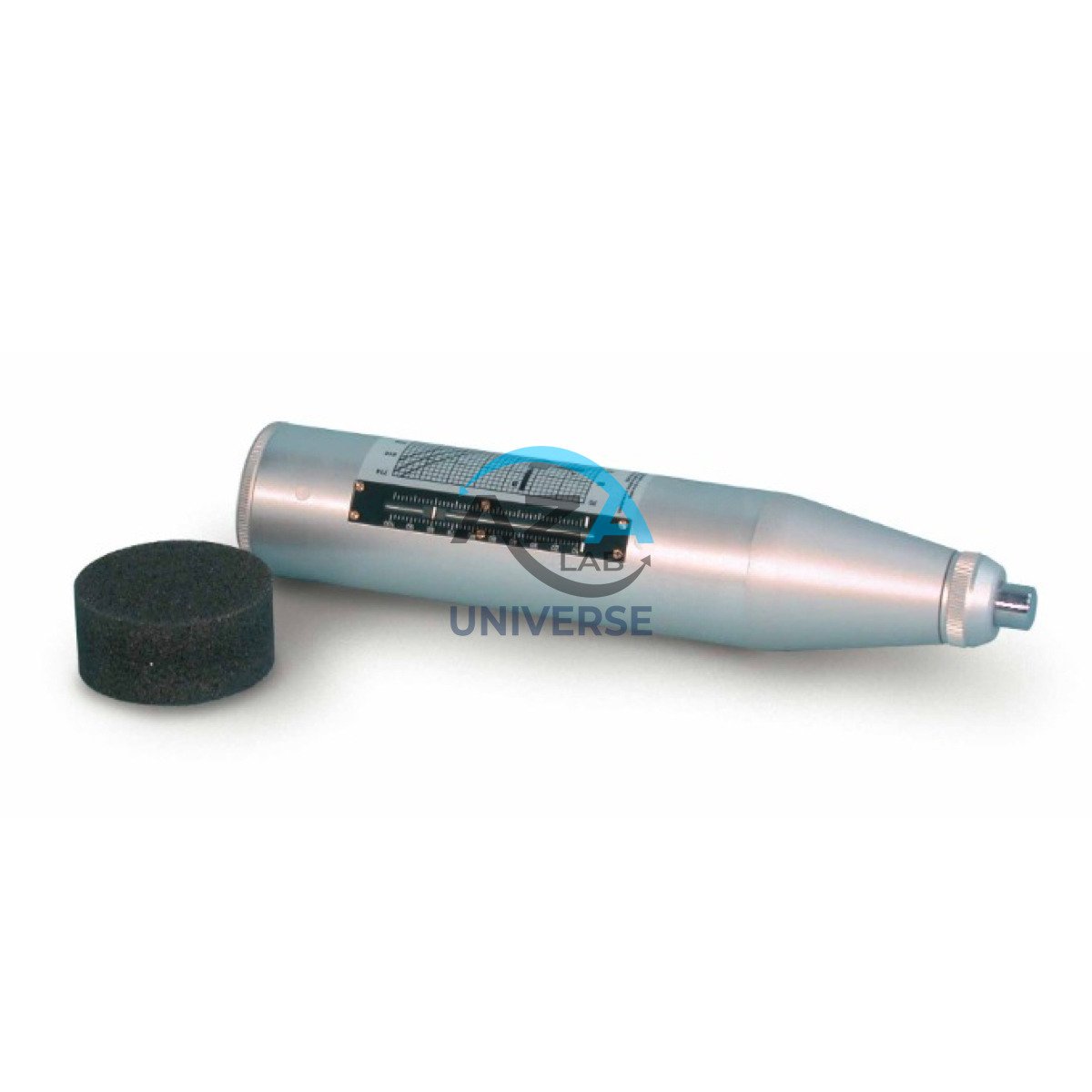

CONCRETE TEST HAMMER (SCHMIDT HAMMER) N TYPE AZA1148
The AZA1148 Concrete Test Hammer (N-Type) is a precision-engineered non-destructive testing device designed to estimate the compressive strength of hardened concrete. Operating on the rebound principle, this instrument delivers fast, reliable field measurements without damaging the structure, making it indispensable for quality control, inspection, and structural assessment.With an impact energy of 2.207 Nm, the AZA1148 is suitable for general-purpose testing of standard-density concrete elements with expected compressive strength values ranging between 10 MPa and 70 MPa. It is widely used in construction sites, material testing laboratories, bridges, tunnels, precast yards, and industrial structures.
How It Works
The hammer uses a spring-loaded mass that impacts the concrete surface. The rebound distance of the mass (displayed as an R-value) correlates to the concrete’s surface hardness and indirectly indicates compressive strength. Results can be interpreted using standard conversion charts or custom calibration curves based on local materials.
Description
Key Features & Advantages
Non-Destructive Testing Method
Quickly estimates in-place concrete strength without core extraction or drilling.
Standard N-Type Configuration
Impact energy of 2.207 Nm, ideal for routine structural testing.
Wide Strength Measurement Range
Suitable for concrete between 10–70 MPa, covering most structural applications.
Durable Construction
Lightweight aluminum alloy body with a hardened steel plunger tip ensures long service life.
High Accuracy & Repeatability
Internal components are precision-machined for consistent rebound performance.
Standards Compliant
Factory calibrated and compliant with ASTM C805 and EN 12504-2, ensuring global acceptance.
Field Ready
Supplied with grinding stone for surface preparation, conversion chart, and protective carrying case.
Low Maintenance
Easy cleaning and periodic calibration with a reference anvil maintain long-term accuracy.
Technical Specifications
| Feature | Specification |
|---|---|
| Type | Schmidt Rebound Hammer (N-Type) |
| Impact Energy | 2.207 Nm |
| Strength Range | 10–70 MPa |
| Standards | ASTM C805, EN 12504-2 |
| Body Material | Aluminum alloy |
| Plunger Tip Material | Hardened alloy steel |
| Display | Rebound value (R-Scale) |
| Dimensions | ~280 mm (L) × 55 mm (D) |
| Weight | ~1.4 kg |
| Accessories | Grinding stone, conversion chart, carrying case |
Applications
-
Quality control of concrete works
-
Structural health monitoring
-
Inspection of beams, columns, slabs, pavements
-
Precast component evaluation
-
Comparative strength checks between concrete batches
-
Assessment where destructive testing is impractical
Frequently Asked Questions (FAQ)
Q1: What does the AZA1148 measure?
It measures rebound hardness (R-value), which is correlated to the compressive strength of hardened concrete.
Q2: What type of concrete is suitable for N-Type hammers?
Standard-density concrete between 10–70 MPa.
(N-Type is not recommended for lightweight concrete.)
Q3: How often should calibration be done?
Periodic calibration using a reference anvil is recommended to ensure accuracy.
Q4: Is it suitable for both lab and field use?
Yes. It is designed for rugged site conditions as well as controlled laboratory environments.
Q5: What accessories are included?
A grinding stone, calibration chart, and sturdy carrying case.
Additional information
| Type |
Schmidt Rebound Hammer (N-Type) |
|---|---|
| Impact Energy |
2.207 Nm |
| Strength Range |
10–70 MPa |
| Standard Compliance |
ASTM C805, EN 12504-2 |
You may also like…
Related products
J-RING, NARROW GAP AZA1109
AZA1109 J-Ring – Narrow Gap is a precision testing apparatus designed to evaluate the passing ability of Self-Compacting Concrete (SCC) under highly restrictive conditions. This device simulates densely congested reinforcement zones by creating artificial obstructions that the fresh SCC must flow through without blocking or segregating. It is an essential tool for determining whether SCC mixes are suitable for heavily reinforced structural elements such as beams, columns, and shear walls.
The narrow gap design offers a more stringent test compared to standard J-Rings, allowing engineers and quality control professionals to accurately observe flow diameter, T50 flow time, and blocking behavior. When used in combination with a standard slump flow cone, AZA1109 provides reliable, repeatable results that help optimize mix designs and ensure consistent on-site performance.
Manufactured from durable, corrosion-resistant steel, the AZA1109 is built for repeated use in laboratory and field testing environments. The apparatus is fully compliant with ASTM C1621 and EFNARC guidelines, ensuring internationally accepted testing procedures.
K-SLUMP TESTER AZA1104
AZA1104 K-Slump Tester is a fast, reliable, and non-destructive testing device designed to measure the workability and consistency of fresh concrete directly at construction sites or in laboratory environments. It provides instant slump approximation without the need for traditional slump cones, base plates, or tamping rods, making it an essential tool for modern concrete quality control.
This handheld instrument is widely used by civil engineers, site technicians, and quality inspectors who require quick, repeatable, and real-time results during concrete batching, transportation, and placement. Its simple design eliminates complicated setup, reducing testing time and operator fatigue.
Manufactured from high-grade stainless steel, the probe is corrosion-resistant and suitable for harsh site conditions. The etched scale markings provide direct readings in millimeters or inches, allowing accurate penetration depth measurement without additional instruments.
Unlike traditional slump testing methods, the AZA1104 enables non-destructive testing, meaning the concrete surface remains intact and usable after testing. This feature is especially useful when multiple checks are needed during large pours or continuous batching operation

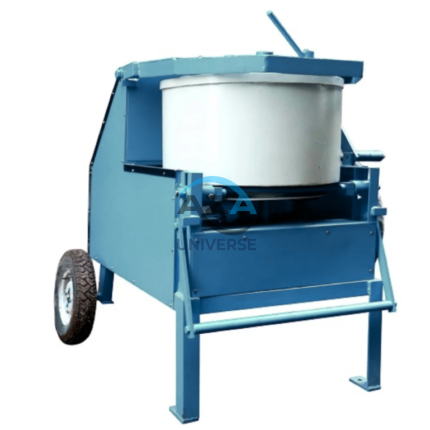

LABOMIX CONCRETE PAN MIXER AZA1118
The AZA1118 Labomix Concrete Pan Mixer is designed for demanding, high-volume mixing operations in construction laboratories, R&D facilities, and material testing centers. Built for durability and precision, it delivers consistent blends of concrete, mortar, grout, and aggregate mixes while supporting rigorous IS/ASTM test procedures.
Engineered with a high-efficiency gear-driven transmission, it provides stable torque, low maintenance requirements, and excellent mixing uniformity. The unit is available in multiple capacities from 90 litres to 300 litres, enabling users to select suitable volume for their operational needs.
The mixer features exchangeable mixing shovels, a safe-locking automatic discharge system, and large mobility wheels that allow a single operator to handle batching, mixing, and discharging efficiently.
SLUMP TEST APPARATUS AZA1102
AZA1102 Slump Test Apparatus is designed for the accurate evaluation of concrete workability and consistency in both laboratory and field conditions. It is an essential quality control tool used in construction projects, civil engineering laboratories, and educational institutions.
This apparatus complies with IS 7320 and BS 1881-102 standards, ensuring reliable and standardized test results. It is primarily used to determine the slump value of fresh concrete, indicating its ease of placement, compaction, and finishing.
The set includes a durable metal slump cone manufactured to standard dimensions — 200 mm bottom diameter, 100 mm top diameter, and 300 mm height — providing dimensional accuracy and long service life. A 16 mm diameter tamping rod, 600 mm long with rounded ends, is provided to properly compact the concrete sample in layers.
The apparatus is suitable for testing concrete with aggregate sizes up to 38 mm, making it ideal for common residential, commercial, and infrastructure applications.
To improve handling and stability, the unit includes a rigid base plate with clamping arrangements and lifting handles, making it easy to use both on construction sites and in laboratories.
The AZA1102 Slump Test Apparatus is known for its simple operation, rugged construction, high accuracy, and low maintenance, making it a dependable choice for routine concrete testing.
STRAIGHT EDGE AZA1120
The AZA1120 Precision Steel Straight Edge is a laboratory-grade tool engineered for leveling, scraping, and finishing concrete and soil specimens during testing procedures. Used extensively in concrete cube/cylinder preparation, slump cone tests, and air meter testing, this straight edge ensures flat, uniform specimen surfaces essential for accurate and repeatable results.
Manufactured from high-grade hardened steel, the AZA1120 offers superior rigidity, dimensional stability, and long-term durability. The flat, 1-inch wide, 12-inch long bar profile allows smooth handling and effortless removal of excess material from molds. A corrosion-resistant polished or matte finish further enhances longevity and reliability in both lab and field conditions.
TAMPING ROD AZA1119
The AZA1119 Tamping Rod is a precision-engineered tool designed for proper compaction of concrete during laboratory and field testing. Essential for slump tests, cube/cylinder preparation, and unit weight determination, this rod ensures accurate removal of air voids, resulting in reliable and repeatable test outcomes.
Manufactured from hardened high-grade steel or stainless steel, the rod maintains dimensional accuracy, bending resistance, and a corrosion-proof finish. Each unit is polished to a smooth surface and features hemispherical ends to prevent mold damage and ensure uniform rodding action. The AZA1119 conforms to ASTM C143, ASTM C192, ASTM C138, IS 1199, and other major testing standards.
It is available in 16 mm and 25 mm diameters, with standard lengths of 600 mm (optional 450 mm). The rods are suitable for use in construction materials labs, QC departments, R&D centers, and field sampling units.
V FUNNEL AZA1111
AZA1111 V Funnel is a precision laboratory apparatus designed to measure the flow time and viscosity of Self-Compacting Concrete (SCC). It evaluates how quickly fresh SCC passes through a narrow, V-shaped section under the action of gravity, providing critical insight into the concrete’s workability, stability, and resistance to segregation.
The V Funnel test is essential when designing SCC mixes that must flow through heavily reinforced or congested formwork. By recording the time taken for concrete to completely discharge from the funnel, the apparatus allows engineers and technicians to quickly judge whether a mix is too stiff, too viscous, or optimally balanced.
Manufactured with a durable, corrosion-resistant metal body and a precise quick-release gate mechanism, AZA1111 ensures smooth, repeatable testing. Its rigid structure and stable stand make it suitable for both laboratory and site-based quality control environments.
The equipment is designed in compliance with EN 12350-9 and EFNARC guidelines, ensuring globally accepted and repeatable test results

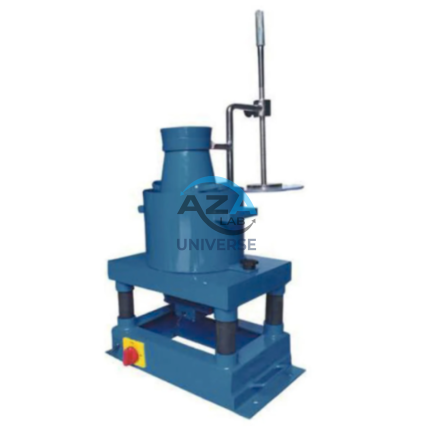

VEE BEE CONSISTOMETER AZA1101
