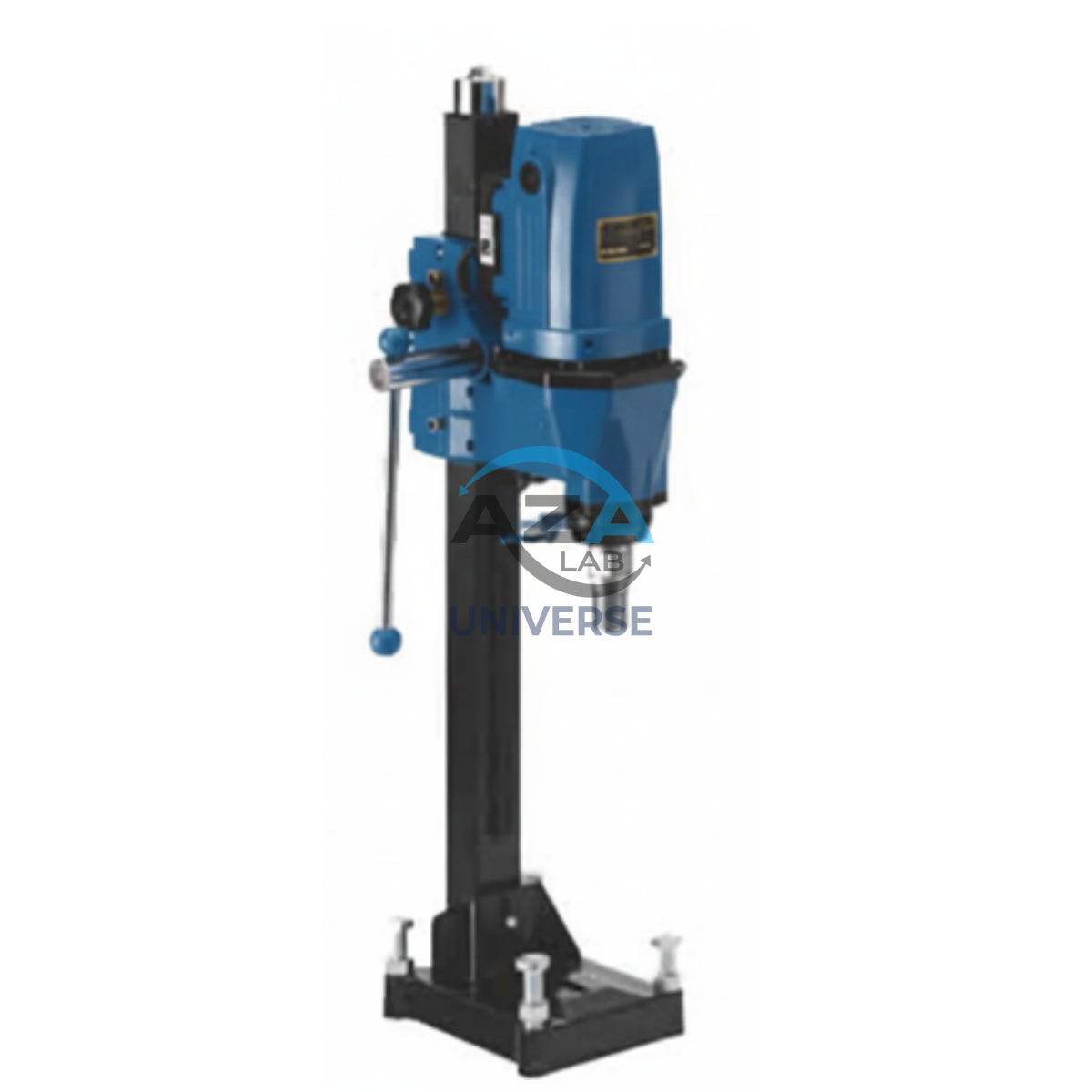

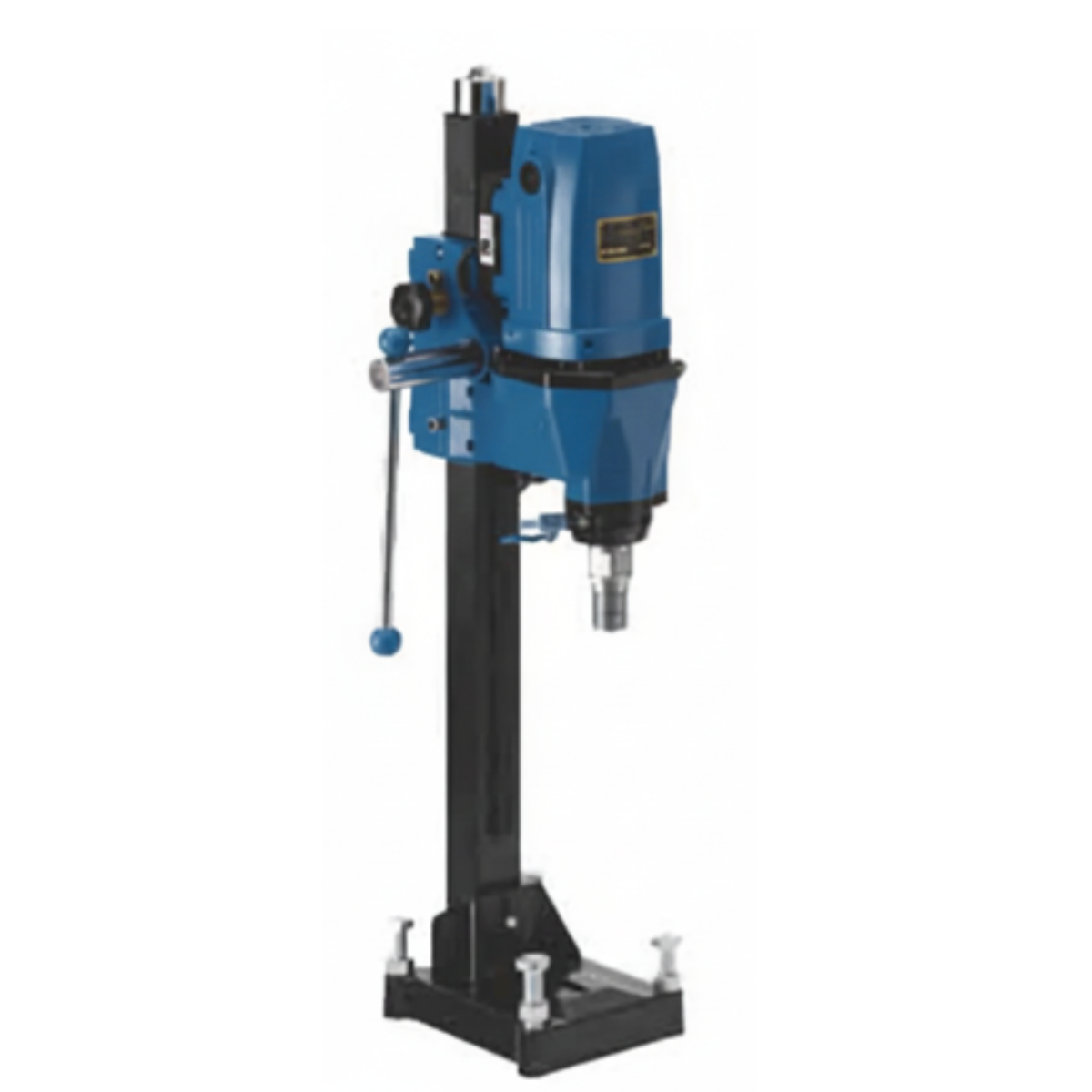

CORE CUTTING/CORE DRILLING MACHINE (MOTORISED) AZA0996
AZA0996 Motorised Core Cutting & Drilling Machine is a high-performance, electrically powered coring system designed for extracting precise cylindrical samples from concrete, asphalt, masonry, and geological formations. Built for both laboratory and field use, this machine combines strong structural stability with smooth, vibration-free drilling for consistently accurate core samples.
The machine is powered by a high-torque single-phase electric motor (1.5–2 HP) that delivers a constant rotational speed, ensuring clean cuts even through reinforced concrete. Its precision vertical feed system with adjustable speed control allows operators to manage penetration rate according to material hardness, ensuring minimal sample damage and superior core integrity.
A heavy-duty trolley-mounted steel frame provides excellent stability while allowing easy movement across job sites or within laboratories. The integrated wet drilling water feed system cools the diamond core bit, extends tool life, and significantly reduces dust for safer operation.
Designed to support core barrel sizes from 25 mm to 150 mm, the AZA0996 is suitable for a wide range of standard testing applications including structural investigations, pavement evaluation, and research sampling.
This machine is compliant with major international standards including ASTM C42/C42M, IS 516:2018, and AASHTO T24, making it a reliable choice for professional testing environments.
Description
Key Features
• High-torque electric motor for stable, uninterrupted drilling
• Heavy-duty steel trolley frame for strength and portability
• Precision vertical feed with adjustable speed control
• Supports core sizes from 25 mm to 150 mm
• Integrated wet drilling cooling system
• Vibration-resistant design for accurate sampling
• Suitable for lab and on-site applications
Technical Specifications
| Parameter | Details |
|---|---|
| Model | AZA0996 |
| Power Source | Electric Motor, 1.5 – 2 HP (Single Phase) |
| Core Diameter Range | 25 mm – 150 mm |
| Maximum Drilling Depth | Up to 500 mm (bit dependent) |
| Frame Type | Trolley-mounted, powder-coated steel |
| Feed Mechanism | Manual handwheel vertical feed |
| Cooling System | Integrated wet drilling (water feed) |
| Bit Type | Diamond / Carbide core barrels |
| Motor Protection | Thermal overload protection |
| Approx. Weight | 90 – 120 kg |
| Application | Concrete, asphalt, masonry, geological coring |
Applications
• Concrete strength sample extraction
• Asphalt and pavement core testing
• Structural investigation works
• Laboratory material research
• Geotechnical and civil engineering projects
Frequently Asked Questions (FAQ)
Q1: What materials can AZA0996 drill?
It is suitable for concrete, asphalt, masonry, and geological materials.
Q2: What core sizes are supported?
It supports core barrel diameters from 25 mm to 150 mm.
Q3: Is the machine portable?
Yes, it has a trolley-mounted base for easy mobility.
Q4: Does it support wet drilling?
Yes, it includes an integrated water feed system for cooling and dust control.
Q5: Is the machine standard-compliant?
Yes, it complies with ASTM C42, IS 516, and AASHTO T24 standards.
Additional information
| Focus Keyword |
Core cutting |
|---|---|
| Power Source |
Electric motor (1.5 – 2 HP, single phase) |
| Core Diameter Compatibility |
25 mm – 150 mm |
| Drilling Depth Capacity |
Up to 500 mm (core bit dependent) |
