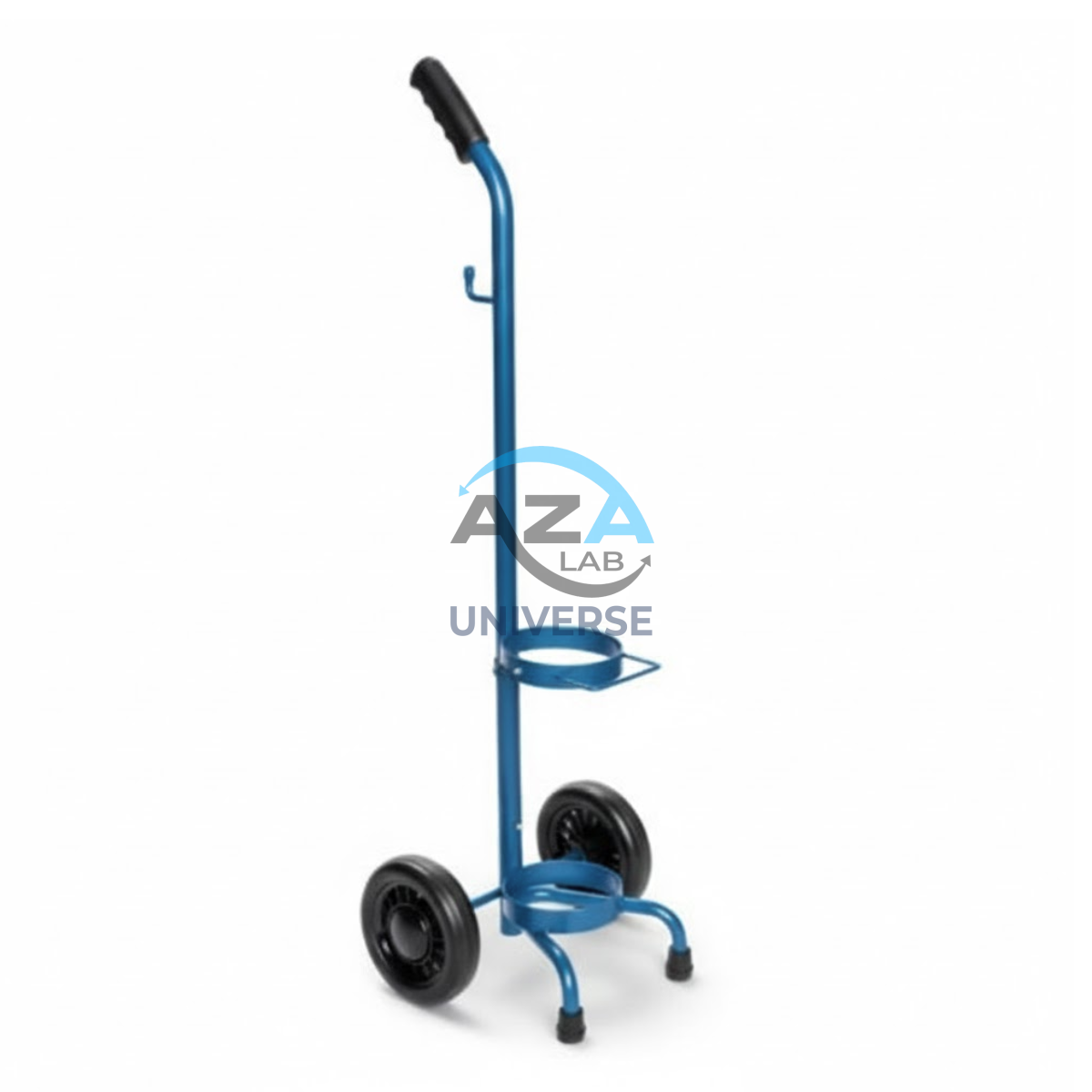

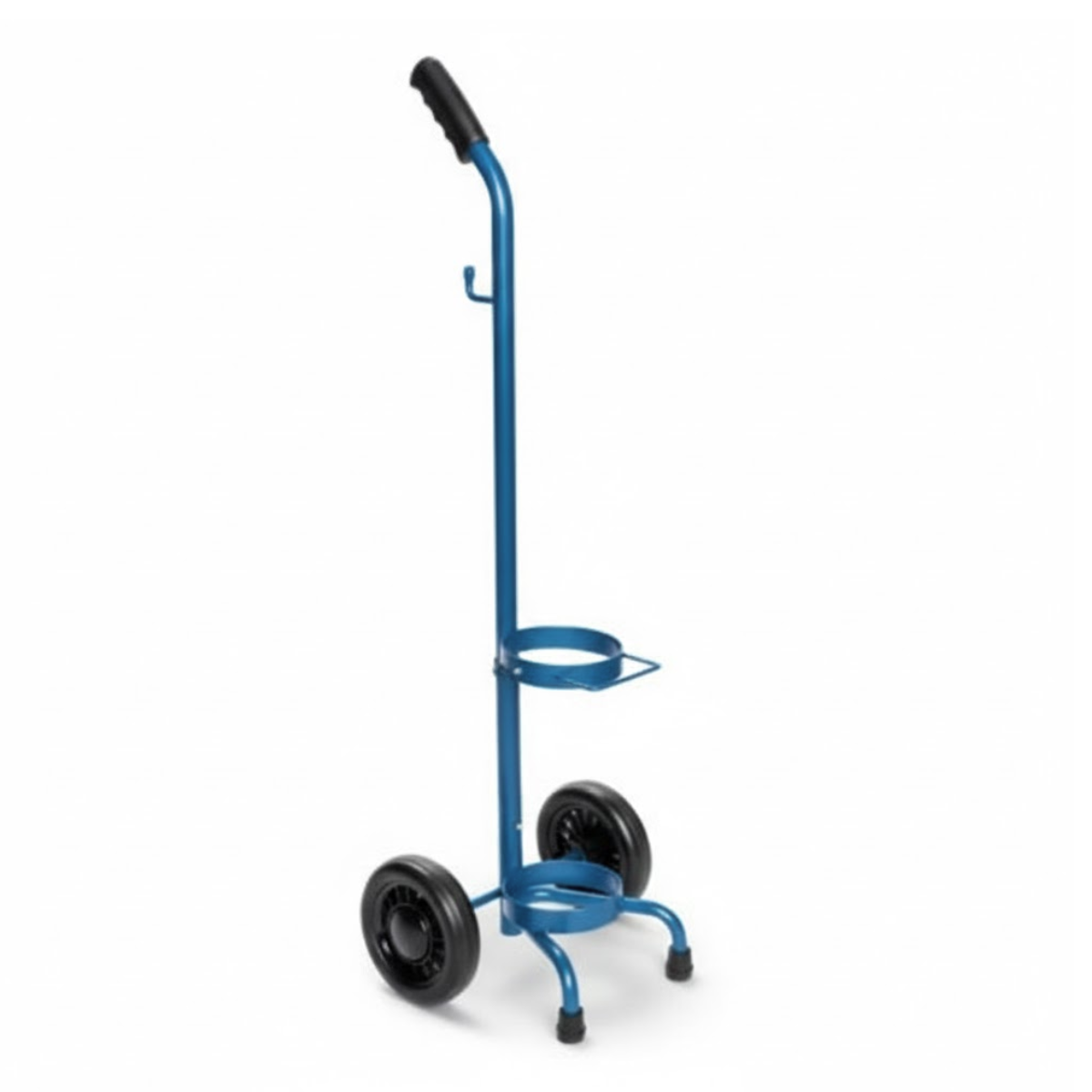

CYLINDER CARRIER AZA1160
The AZA1160 Concrete Cylinder Carrier from AZA-LAB is a precision-engineered handling tool designed for laboratories, construction sites, and field testing environments that routinely work with concrete cylinder specimens. Built for the safe and ergonomic transport of 150 mm × 300 mm concrete cylinders, this carrier ensures sample integrity throughout the curing and testing process.
Concrete cylinder specimens are fundamental in assessing compressive strength as per civil and structural engineering standards. Weighing over 15 kg when cured, these specimens are prone to chipping, cracking, or impact damage when manually handled. The AZA1160 provides a secure, stable, and balanced solution that safeguards the sample while offering ease of movement for technicians.
Manufactured using industrial-grade, powder-coated steel, the carrier delivers long-term durability, corrosion resistance, and dependable performance in wet, dusty, or chemically exposed environments. Despite its rugged construction, the frame remains lightweight, allowing repeated lifting without user fatigue.
The carrier’s custom-curved gripping arms conform to the geometry of standard cylinders, preventing rolling or lateral movement during transport. Its ergonomically placed handles ensure balanced weight distribution, enabling a single operator to carry heavy cylinders safely and comfortably. The open-frame design holds the specimen firmly while keeping both ends accessible for inspection or curing.
Engineered to support testing protocols aligned with ASTM C39 and IS 516, the AZA1160 ensures safe handling practices that contribute to accurate compressive strength testing.
Description
Key Features
• Full-frame support for safe, stable transport
• Optimized for 150 mm × 300 mm cylindrical test specimens
• Quick insert-and-remove design with no latches or adjustments
• Powder-coated steel frame for corrosion resistance and long service life
• Ergonomic anti-slip handles for comfortable and secure grip
• Lightweight construction with high load-bearing capacity
• Minimal surface contact to prevent moisture retention and heat buildup
• Designed for high-throughput testing labs and on-site operations
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Concrete Cylinder Carrier |
| Model | AZA1160 |
| Material | Powder-coated steel |
| Suitable Specimen Size | 150 mm (dia.) × 300 mm (height) |
| Handle Design | Ergonomic with anti-slip grip |
| Load Capacity | Up to 20 kg |
| Construction Type | Welded steel frame |
| Weight | Approx. 2.5 – 3.0 kg |
| Surface Finish | Corrosion-resistant powder coating |
| Application | Transport of concrete cylinders (lab & field) |
| Standards Supported | ASTM C39, IS 516 |
Applications
• Civil engineering testing laboratories
• Construction QA/QC departments
• Precast concrete manufacturing units
• Government and third-party test centers
• Universities and training institutions
Frequently Asked Questions (FAQ)
Q1. What specimen size does the carrier support?
It is specifically designed for 150 mm × 300 mm standard test cylinders.
Q2. Is the carrier suitable for field work?
Yes. Its durable powder-coated steel frame performs reliably in outdoor and on-site environments.
Q3. Is it comfortable for long-distance or repetitive handling?
Yes. The ergonomic handles reduce wrist strain and enhance comfort during repeated lifting.
Q4. Can the carrier scratch or damage the specimen surface?
No. The arms hold the cylinder with minimal contact, reducing the risk of abrasion.
Q5. Does the product require assembly?
No. The AZA1160 comes fully assembled and ready for use.
Additional information
| Product Type |
Concrete Cylinder Carrier |
|---|---|
| Material |
Powder-coated steel |
| Suitable Specimen Size |
150mm diameter × 300mm height cylinders |
| Handle Design |
Ergonomic with anti-slip grip |
You may also like…
AUTOMATED CLEVELAND OPEN CUP FLASH POINT ANALYZER AZA1279
The Automated Cleveland Open Cup Flash Point Analyzer (Model: AZA1279) from AZA Lab is a fully automated, microprocessor-controlled flash point testing system designed for accurate determination of the flash point of petroleum products using the Cleveland Open Cup (COC) method. Engineered in strict compliance with ASTM D92, the AZA1279 delivers reliable, repeatable, and traceable results for laboratories where safety, regulatory compliance, and precision are essential.
Flash point determination plays a vital role in assessing the flammability, handling safety, storage conditions, and transportation classification of combustible liquids. The AZA1279 automates the entire test cycle—heating, ignition, detection, and result recording—minimizing human error while maximizing consistency and operator safety
PARTICLE DENSITY BY GAS JAR METHOD (END-OVER-END SHAKER) AZA0885
The AZA0885 Particle Density Test Set from Azalab is a precision laboratory apparatus designed for determining the specific gravity (particle density) of fine-grained soils, particularly silts and clays. This method is especially effective where conventional pycnometer techniques may suffer from air entrapment or handling difficulties with cohesive soils.
The apparatus operates on the Gas Jar Method with an End-Over-End Shaker, a standardized and highly reliable procedure specified in IS 2720 (Part 3 / Section 1) and BS 1377. The controlled mechanical rotation ensures uniform suspension of soil particles, leading to accurate, repeatable, and operator-independent results.
Related products
CONCRETE FLOW TABLE TEST SET AZA1110
AZA1110 Concrete Flow Table Test Set is a precision-engineered laboratory apparatus designed to determine the workability, consistency, and flow characteristics of fresh concrete. It is especially suitable for Self-Compacting Concrete (SCC), precast concrete, and high-consistency mixes where the traditional slump test is not effective.
This test set works by allowing a freshly mixed concrete sample to spread under controlled, repeated vertical jolts of a mechanically calibrated table. The final spread diameter of the concrete is measured to assess its flowability and uniformity.
Built with a rigid, precisely machined table surface, the AZA1110 ensures repeatable and reliable results. Its heavy-duty construction allows long-term use in demanding laboratory environments while remaining easy to clean, store, and maintain.
The apparatus complies with major international standards including IS 1199, ASTM C1437, and BS EN 12350-5, making it suitable for both domestic and international testing requirements.

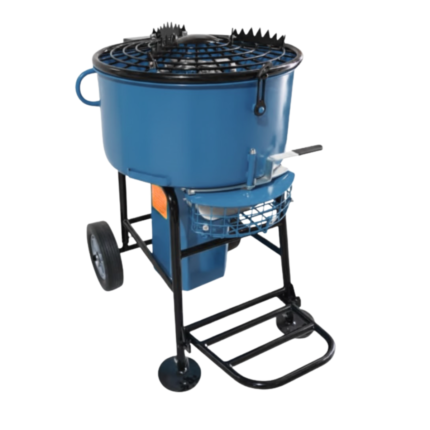

LABOMIX CONCRETE PAN MIXER AZA1118
