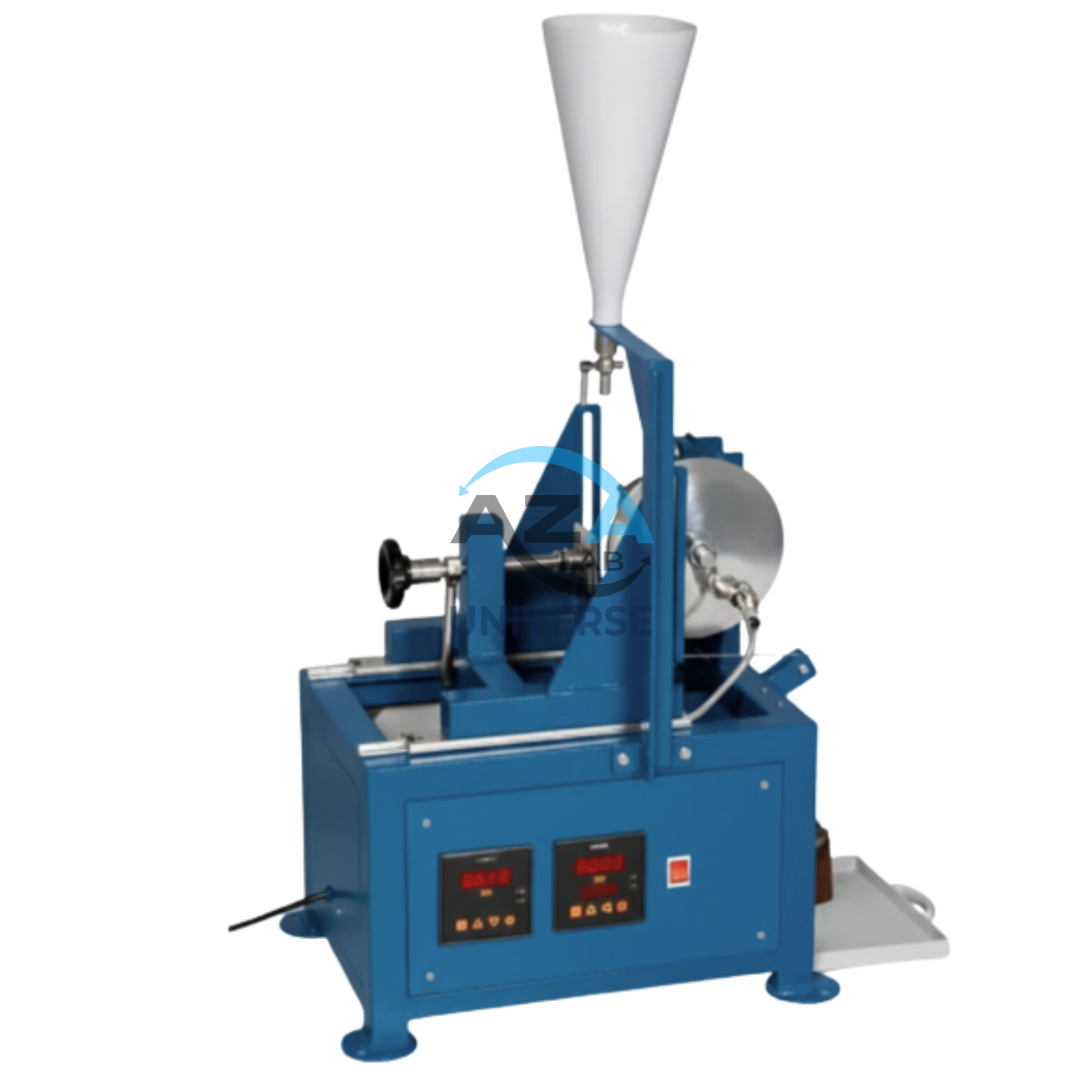

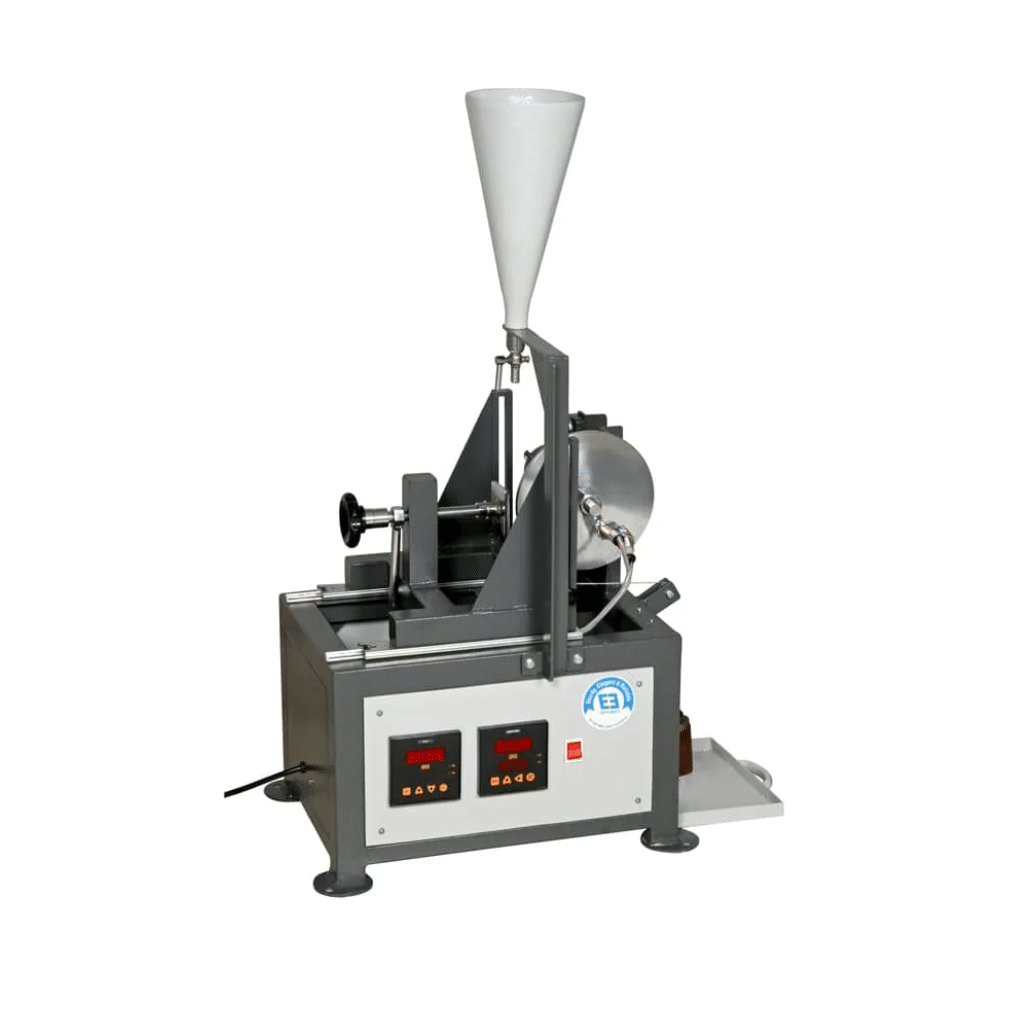

DEEP ABRASION MACHINE FOR UNGLAZED TILES AZA1260
The AZA LAB Deep Abrasion Testing Machine – Model AZA1260 is a high-performance laboratory instrument specifically designed to measure the deep abrasion resistance of unglazed ceramic tiles in strict accordance with ISO 10545-6 and IS 13630 (Part 12) standards. This machine is an essential quality assurance tool for tile manufacturers, certification bodies, and research laboratories focused on durability and wear performance.
Deep abrasion resistance is a critical parameter for unglazed tiles used in high-traffic commercial, industrial, and public spaces, where surface wear directly impacts service life and safety. The AZA1260 delivers accurate, repeatable, and standardized results that reflect real-world abrasion conditions.
Description
Working Principle
The AZA1260 evaluates abrasion resistance by rotating a mild steel disc against the surface of a test specimen while an abrasive material is introduced at a controlled rate. A precisely applied vertical load ensures consistent contact pressure between the disc and the tile.
As the disc rotates at a controlled speed, material is gradually removed from the tile surface. The degree of wear is then measured to determine compliance with ISO and BIS requirements. This method accurately simulates long-term mechanical wear experienced by unglazed tiles in actual use.
Key Applications
-
Quality control in ceramic and porcelain tile manufacturing
-
Certification testing for compliance with ISO 10545-6
-
R&D laboratories developing new tile compositions
-
Third-party inspection and testing agencies
-
Academic and material science research institutions
Key Features & Technical Advantages
International Standards Compliance
-
Fully compliant with ISO 10545 (Part 6)
-
Conforms to IS 13630 (Part 12) requirements for deep abrasion testing
Precision Steel Abrasion Disc
-
High-grade mild steel disc with controlled diameter and thickness
-
Ensures consistent and reproducible abrasion results
Controlled & Automated Operation
-
Equipped with a 3-digit preset electronic counter
-
Automatically stops the machine after the selected number of revolutions
-
Memory backup prevents data loss during power interruption
Adjustable Load Application
-
Vertical load adjustable from 5 kg to 20 kg in 1 kg increments
-
Ensures accurate simulation of different wear intensities
Efficient Abrasive Handling
-
Integrated 5-liter abrasive storage hopper
-
Manual flow control for consistent abrasive feed
-
Collection tray for used abrasive material
Robust & Durable Construction
-
Heavy-duty metallic frame with corrosion-resistant finish
-
Grey hammertone paint with chrome/zinc-plated components
-
Designed for long-term operation in industrial lab environments
Why Choose AZA1260
-
Delivers highly repeatable and accurate deep abrasion results
-
Meets global ceramic tile testing standards
-
Simple operation with automated cycle control
-
Rugged design ensures long service life
-
Ideal for continuous quality assurance testing
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1260 |
| Test Standard | ISO 10545-6, IS 13630 (Part 12) |
| Steel Disc Diameter | 200 ± 0.2 mm |
| Disc Thickness | 10 ± 0.1 mm |
| Disc Material | Mild steel (commercial grade) |
| Rotation Speed | 75 ± 5 rpm |
| Applied Load Range | 5 kg to 20 kg (1 kg steps) |
| Motor Rating | 1/4 HP, single-phase |
| Counter | 3-digit preset electronic counter with reset & memory backup |
| Abrasive Hopper Capacity | 5 liters |
| Power Supply | 230 V AC, 50 Hz, single-phase |
| Machine Weight | Approx. 90–100 kg |
Frequently Asked Questions (FAQ)
Q1: What type of tiles can be tested using AZA1260?
The machine is designed specifically for unglazed ceramic and porcelain tiles.
Q2: Which standards does the AZA1260 comply with?
It complies with ISO 10545-6 and IS 13630 (Part 12) for deep abrasion resistance testing.
Q3: Is the load adjustable during testing?
Yes. The applied force can be adjusted from 5 kg to 20 kg in precise 1 kg increments.
Q4: Is the test cycle automatic?
Yes. The electronic counter automatically stops the machine after completing the preset number of rotations.
Q5: Is this machine suitable for continuous industrial use?
Absolutely. Its robust construction and reliable components make it ideal for continuous QA/QC operations.
Related products
Abrasion Testing Machine for Glazed Tiles AZA1262
The AZA LAB Abrasion Testing Machine for Glazed Tiles (AZA1262) is a robust, high-performance laboratory instrument engineered for precise and high-speed abrasion resistance testing of glazed ceramic tiles. Fully compliant with BIS 13630-11 and EN ISO 10545-7, this machine is designed to ensure reliable evaluation of tile durability under simulated real-world wear conditions.
With the capability to test up to four specimens simultaneously, the AZA1262 significantly improves testing efficiency while maintaining exceptional accuracy and repeatability—making it ideal for tile manufacturers, certification laboratories, and quality control departments

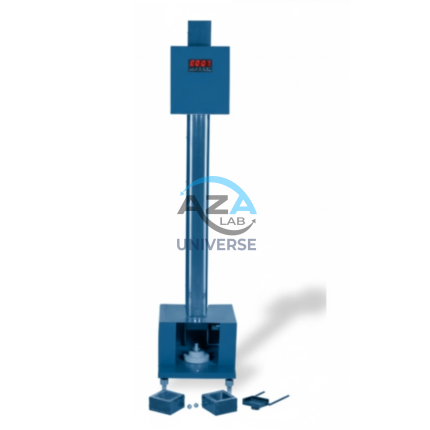

Ball Release for Impact Resistance Tester AZA1295
The AZA LAB Ball Release for Impact Resistance Tester (AZA1295) is a precision-engineered laboratory accessory designed to deliver accurate, repeatable, and standardized ball drop impact testing for a wide range of materials. It is an essential component of drop weight impact testing systems used in research & development, quality control, compliance testing, and academic laboratories.
This device ensures controlled release of a weighted ball from a defined height, eliminating operator variability and guaranteeing consistent impact energy in every test. The AZA1295 is widely used to evaluate impact strength, puncture resistance, and breakage behavior of materials under sudden mechanical stress.
DESICCATORS AZA1266
A desiccator is an essential laboratory container used for dry storage and protection of hygroscopic materials from atmospheric moisture. Our desiccators are designed to offer airtight sealing, durability, and resistance to chemical reactions.
Whether you're storing anhydrous chemicals, moisture-sensitive reagents, or conducting vacuum drying, our desiccators are built for consistent, high-performance usage.

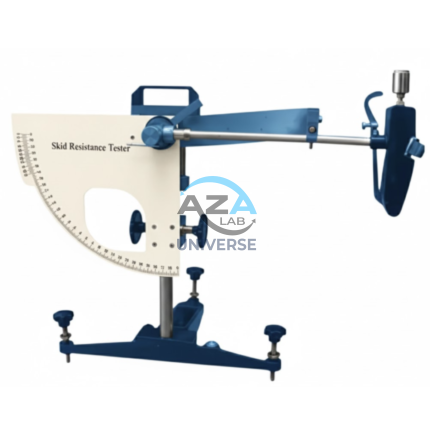

Pendulum Skid Resistance Tester AZA1297
Slip & Skid Resistance Measurement System
Model AZA1297
The AZA1297 Pendulum Skid Resistance Tester is a proven, industry-recognized instrument designed to measure the slip and skid resistance of surfaces in accordance with international safety and performance standards. It is widely used to evaluate pedestrian walkways, road surfaces, ramps, tiled floors, industrial workspaces, and sports facilities where slip-related hazards must be controlled and documented.
Based on the energy loss pendulum principle, the AZA1297 provides accurate and repeatable measurements expressed as Pendulum Test Value (PTV) or British Pendulum Number (BPN), enabling engineers, inspectors, and quality managers to quantify surface friction reliably.

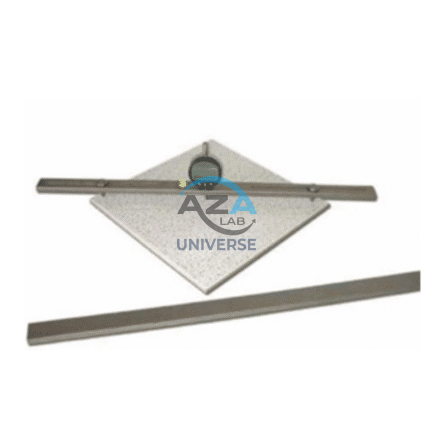

PORTABLE GAUGE / PLUCOMETER – WITH DIGITAL GAUGES AZA1271
The AZA LAB Portable Gauge – Model AZA1271 is a precision instrument designed for the measurement of surface flatness and warpage in ceramic tiles and related materials. Compliant with BIS 13630 (Part 1), this advanced Plucometer features a digital dial gauge system for highly accurate and user-friendly measurement.
Ideal for use in quality control laboratories and tile manufacturing environments, the system allows direct assessment of surface irregularities across various tile sizes.

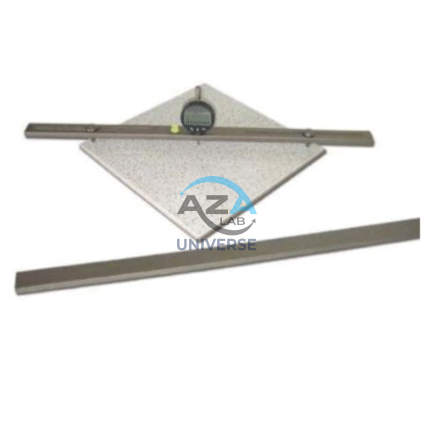

UNIVERSAL DIGITAL GAUGE – DIAGONAL LINEARITY PLUCOMETER AZA1272
