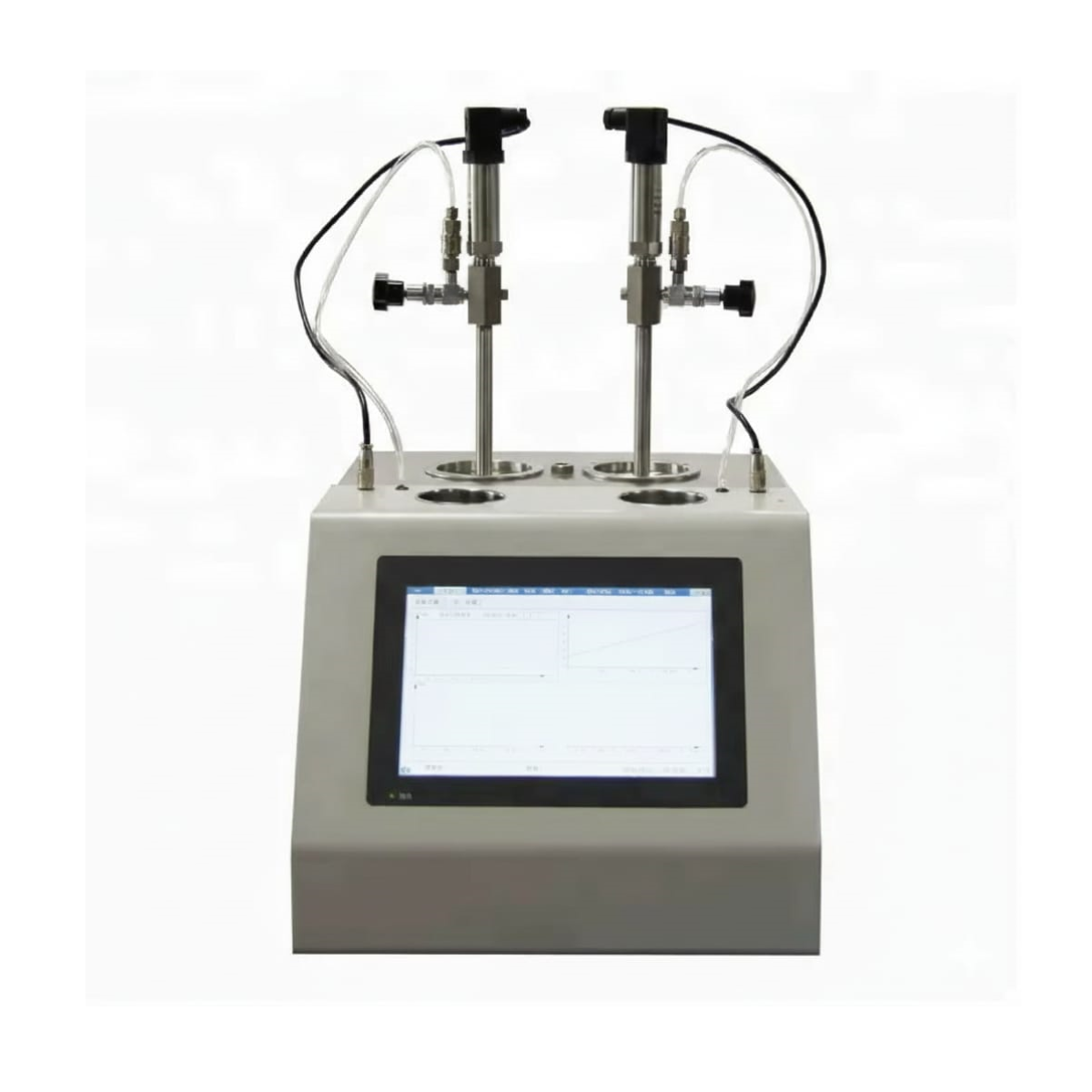

GASOLINE OXIDATION STABILITY TESTER AZA1318
The AZA1318 Gasoline Oxidation Stability Tester from AZA Lab is a fully automated laboratory instrument designed to determine the oxidation stability of gasoline using the induction period method, in strict accordance with GB/T 8018-2015 and ASTM D525.
Oxidation stability testing is essential for evaluating a gasoline’s resistance to degradation during storage and use. By subjecting fuel samples to accelerated oxidation conditions, the AZA1318 accurately measures the induction period, providing reliable insight into fuel quality, shelf life, and compliance with regulatory specifications.
Description
Operating Principle
The AZA1318 measures the time required for gasoline to undergo rapid oxidation under controlled temperature and oxygen pressure conditions. The pressure drop inside the oxygen bomb is continuously monitored and recorded. The induction period is automatically determined when oxidation accelerates, ensuring objective, repeatable, and operator-independent results.
Key Features
Full Compliance with International Standards
-
Conforms to ASTM D525 and GB/T 8018-2015
-
Suitable for regulatory, refinery, and QC laboratories
Dual-System Architecture
-
Upper system: Industrial control PC for data processing and visualization
-
Lower system: Independent testing host for stable and precise control
-
Fully automated operation with minimal operator intervention
Water-Free Metal Bath Technology
-
Replaces traditional water bath with a metal heating bath
-
Eliminates water contamination and evaporation issues
-
Reduces maintenance and improves long-term reliability
High Accuracy Pressure Monitoring
-
Integrated oxygen bomb assembly with short oil–gas pressure pipeline
-
High-sealing manual needle valves improve measurement stability
-
Pressure resolution up to ±1 kPa
Energy-Efficient & Safe Design
-
Advanced thermal insulation reduces power consumption
-
External surfaces remain cooler, minimizing burn risk
User-Friendly Operation
-
Quick-release oxygen bomb brackets for easy handling
-
Simple setup and removal before and after testing
Real-Time Data Visualization
-
Live pressure curves for two oxygen bombs simultaneously
-
Automatic time-axis scaling for intuitive test monitoring
-
Clear identification of induction period endpoint
Applications
-
Petroleum refineries
-
Fuel quality control laboratories
-
Gasoline blending and storage facilities
-
Regulatory and inspection agencies
-
Research and fuel formulation laboratories
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AZA1318 |
| Test Method | Induction Period (Oxidation Stability) |
| Standards | ASTM D525, GB/T 8018-2015 |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Total Power Consumption | < 1000 W |
| Pressure Measurement Range | 0 – 1600 kPa |
| Pressure Accuracy | ± 1 kPa |
| Heating Mode | Water-free metal bath |
| Temperature Control Point | 100.0 °C ± 2 °C |
| Ambient Temperature | 15 – 28 °C |
| Relative Humidity | ≤ 85 % |
| Dimensions (L×W×H) | 300 × 420 × 280 mm |
| Net Weight | 23 kg |
Advantages of AZA1318
-
Fully automated software-controlled testing
-
Clean and maintenance-free metal bath system
-
Compact and robust construction
-
High accuracy and excellent repeatability
-
Ideal for routine QC and regulatory compliance testing
Model: AZA1318 – Gasoline Oxidation Stability Tester
