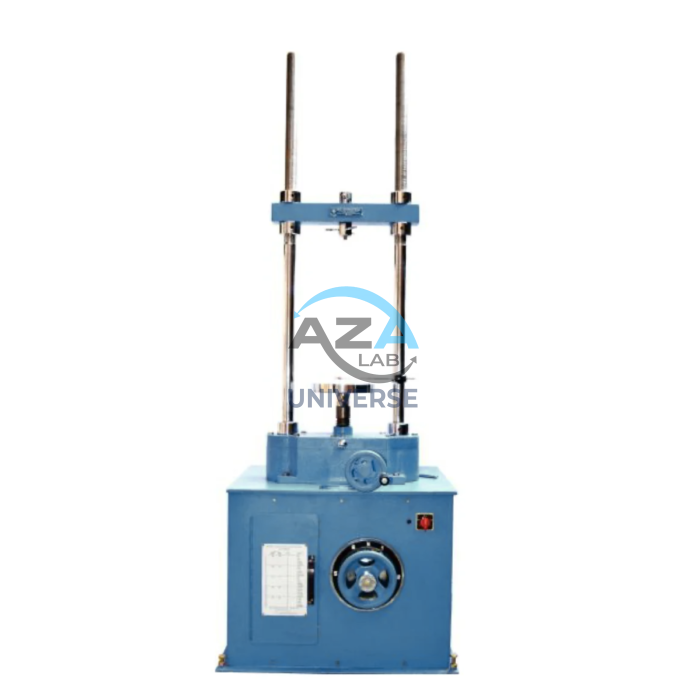

LOAD FRAME, MOTORISED, 30 SPEEDS AZA0909 - Image 1
Click to enlarge
LATERAL PRESSURE ASSEMBLY 10KG / cm² AZA0908
LATERAL PRESSURE ASSEMBLY 10KG / cm² AZA0908
Back to products
California Bearing Ratio, CBR Apparatus, ASTM Version Mould, Soil Strength Test
CALIFORNIA BEARING RATIO APPARATUS(ASTM VERSION MOULD) AZA0910

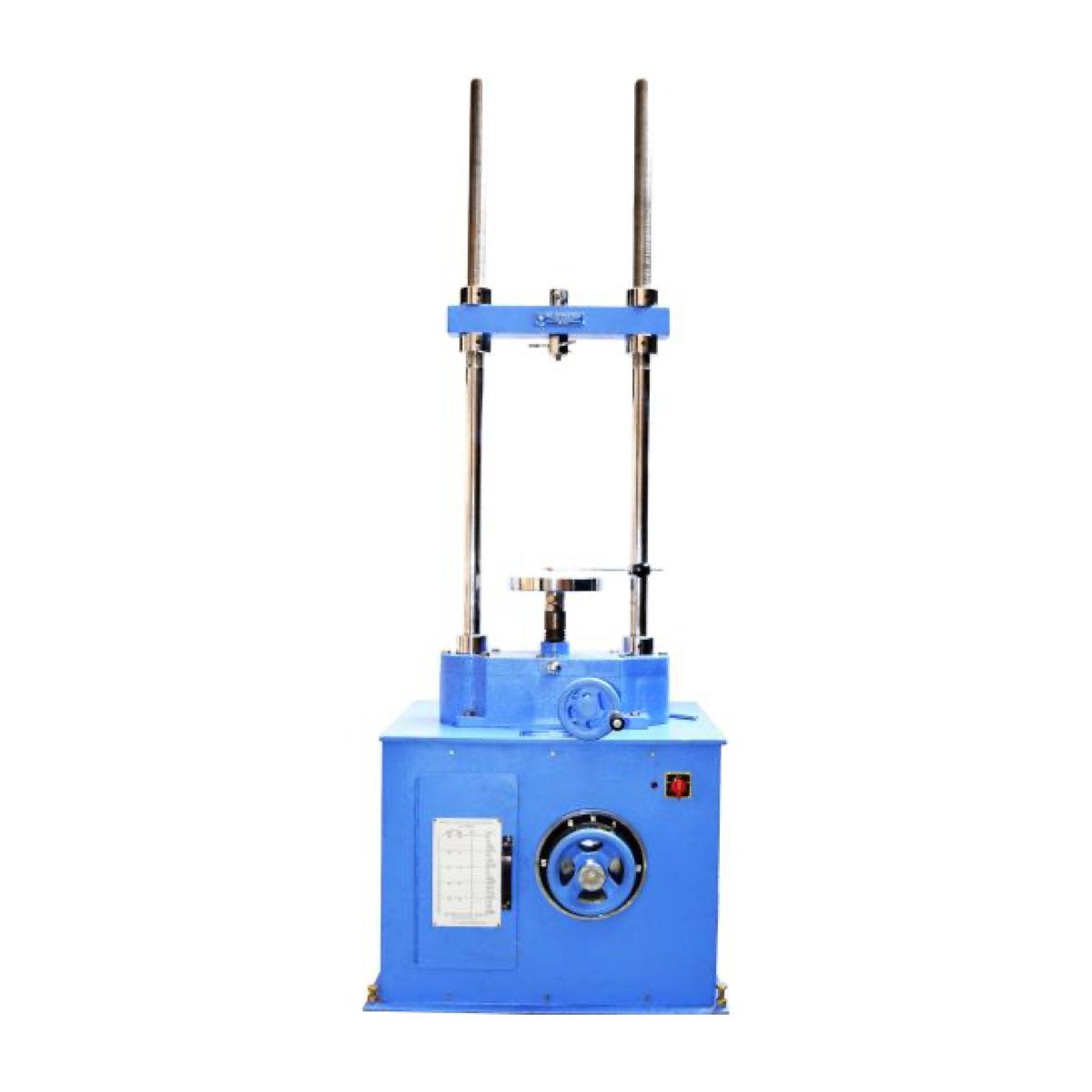

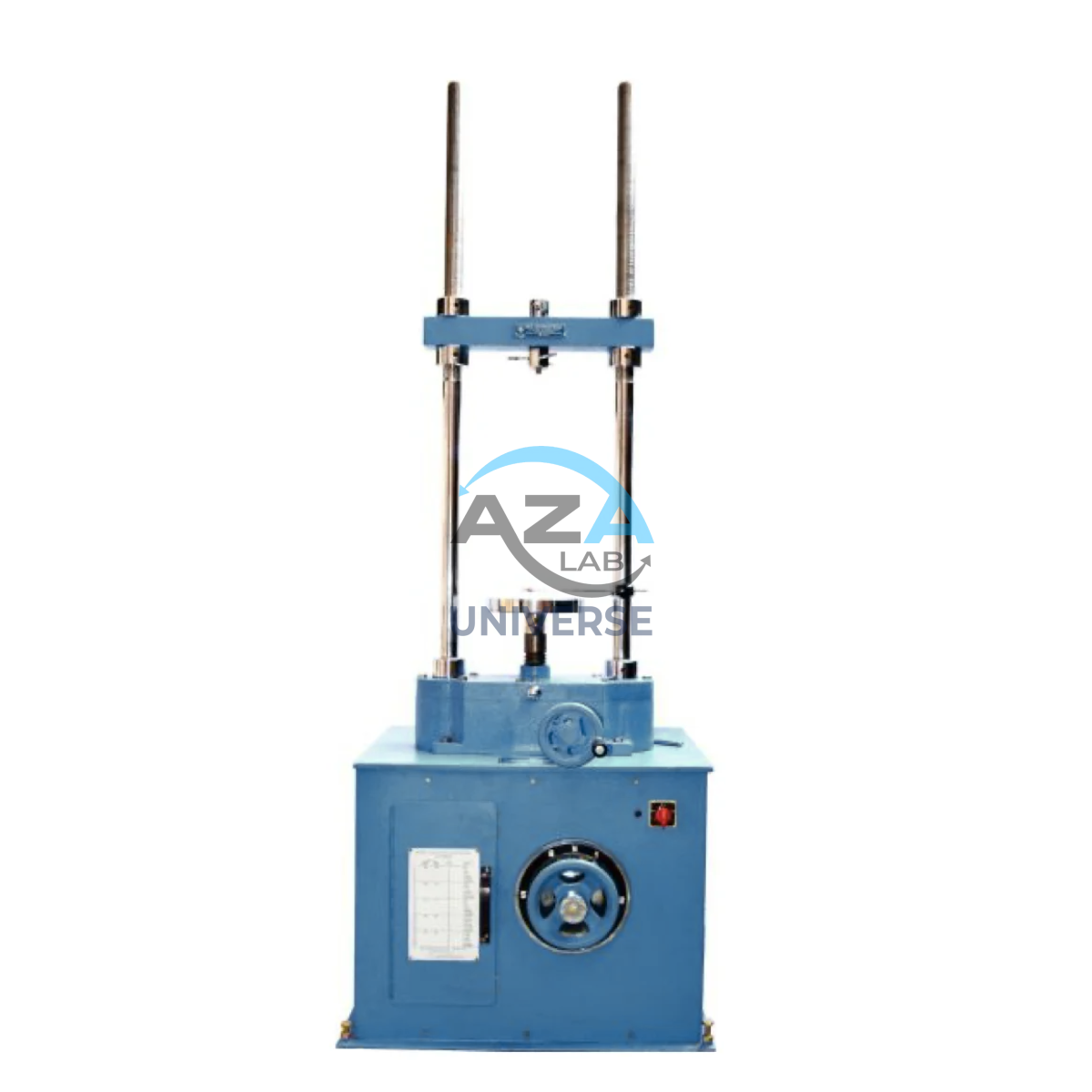

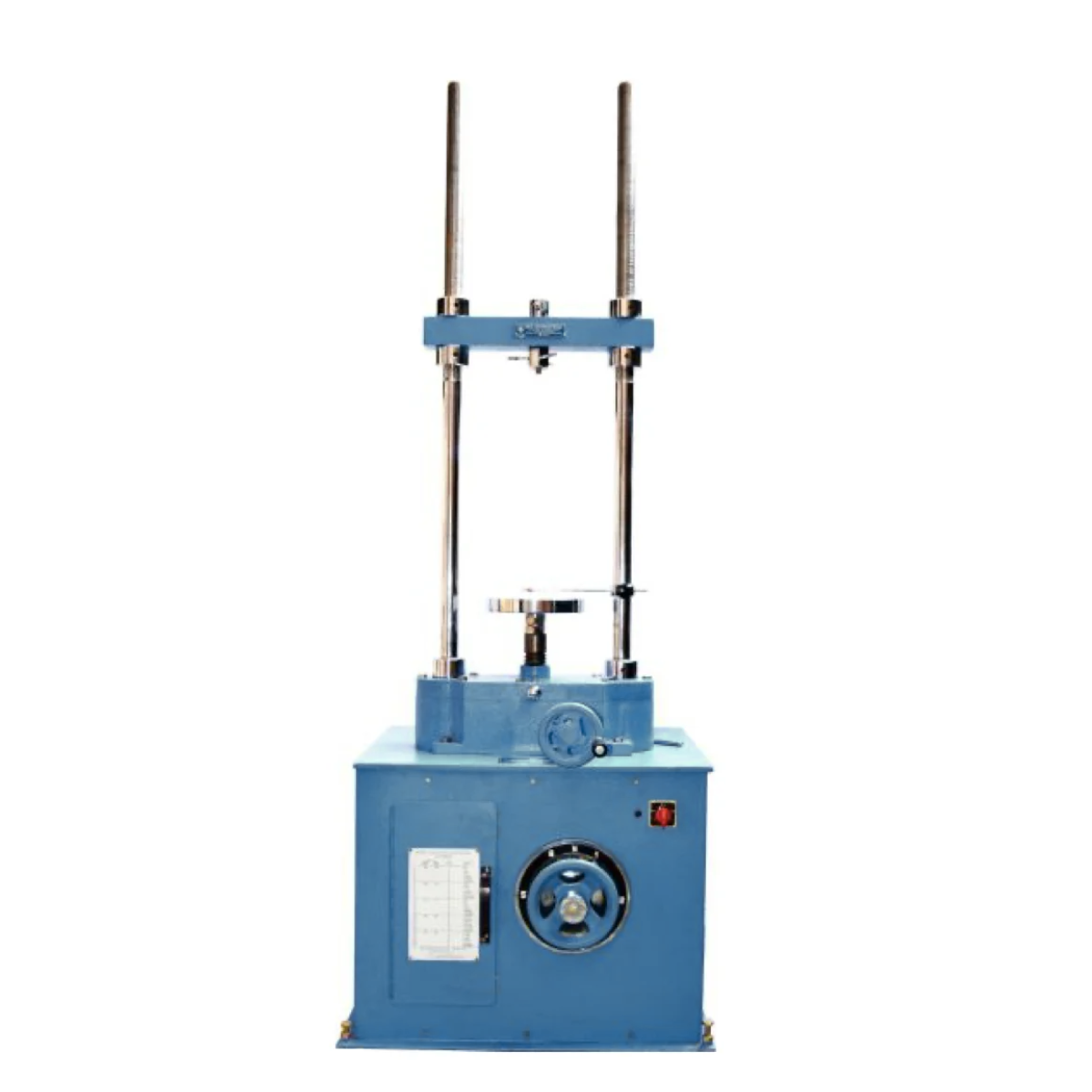

LOAD FRAME, MOTORISED, 30 SPEEDS AZA0909

The AZA0909 Motorised Load Frame (30 Speeds) from Azalab is a versatile, high-precision loading system designed for applying controlled vertical loads in a wide range of geotechnical soil tests. Engineered for accuracy, stability, and long-term laboratory use, the AZA0909 supports critical tests such as CBR, UCS, Triaxial (UU, CU, CD), and Consolidation (Oedometer).

Equipped with a 30-speed gearbox and motorised screw drive, the load frame allows precise control of displacement rates, enabling compliance with multiple national and international testing standards. Its smooth, vibration-free operation ensures repeatable and reliable test results across varied loading requirements.

Enquiry on WhatsApp
Category:
Description

Description

Applications

The AZA0909 is widely used in geotechnical and civil engineering laboratories for:

  • California Bearing Ratio (CBR) testing

  • Triaxial compression tests (UU, CU, CD)

  • Unconfined Compressive Strength (UCS) of soils

  • One-dimensional consolidation (Oedometer) tests

  • General soil and rock mechanical behavior studies

Its adaptability makes it suitable for academic institutions, commercial testing laboratories, research centers, and infrastructure project labs.

Construction & Features

  • Rigid, heavy-duty steel frame to minimize deflection

  • Motorised gear-driven loading system for smooth load application

  • 30 selectable loading speeds for wide test compatibility

  • Speed range suitable for slow consolidation to rapid CBR testing

  • Reversible drive for quick piston return

  • Compatible with standard accessories:
    CBR moulds, triaxial cells, UCS platens, consolidation cells

  • Provision for load measurement via proving ring or load cell

  • Displacement measurement via dial gauge or digital LVDT (optional)

  • Overload protection and emergency stop for operator safety

  • Powder-coated corrosion-resistant finish

Standards & Compliance

Designed to facilitate testing in accordance with:

  • ASTM D1883 – California Bearing Ratio (CBR)

  • ASTM D2166 – Unconfined Compressive Strength (UCS)

  • ASTM D4767 – Consolidated Undrained Triaxial Test

  • ASTM D2435 – One-Dimensional Consolidation

  • IS 2720 (Part 10) – UCS

  • IS 2720 (Part 12) – Triaxial Shear Test

  • IS 2720 (Part 29) – Consolidation

  • BS 1377 Part 4 & Part 7 – CBR and Shear Strength Tests

Specifications

Feature Specification
Model AZA0909
Type Motorised Load Frame with Gear Drive
Number of Speeds 30 selectable speeds
Speed Range Approx. 0.05 – 60 mm/min
Maximum Load Capacity 50 kN / 100 kN (model dependent)
Vertical Clearance Approx. 800 mm (adjustable)
Horizontal Clearance Approx. 300 mm
Drive System Reversible motorised screw drive
Motor Type Induction motor with gearbox
Load Measurement Proving ring or load cell (optional)
Displacement Measurement Dial gauge or digital LVDT (optional)
Frame Material Heavy-duty powder-coated steel
Power Supply 220–240 V AC, 50 Hz
Standards Compliance ASTM, IS, BS

Frequently Asked Questions (FAQ)

Q1: What tests can be performed using AZA0909?
CBR, UCS, triaxial shear tests (UU, CU, CD), and consolidation tests using appropriate accessories.

Q2: How many loading speeds are available?
The frame offers 30 selectable loading speeds.

Q3: Is digital measurement supported?
Yes, digital load cells and LVDTs can be integrated optionally.

Q4: What load capacities are available?
Typically supplied in 50 kN or 100 kN configurations.

Q5: Does the machine meet international standards?
Yes, it is designed to comply with ASTM, IS, and BS soil testing standards.

Additional information

Additional information

Type

Motorised Load Frame with Gear Drive
Speed Range

30 speeds (approx. 0.05 – 60 mm/min)
Maximum Load Capacity

50 kN / 100 kN (model dependent)
Vertical Clearance

Approx. 800 mm (adjustable)
