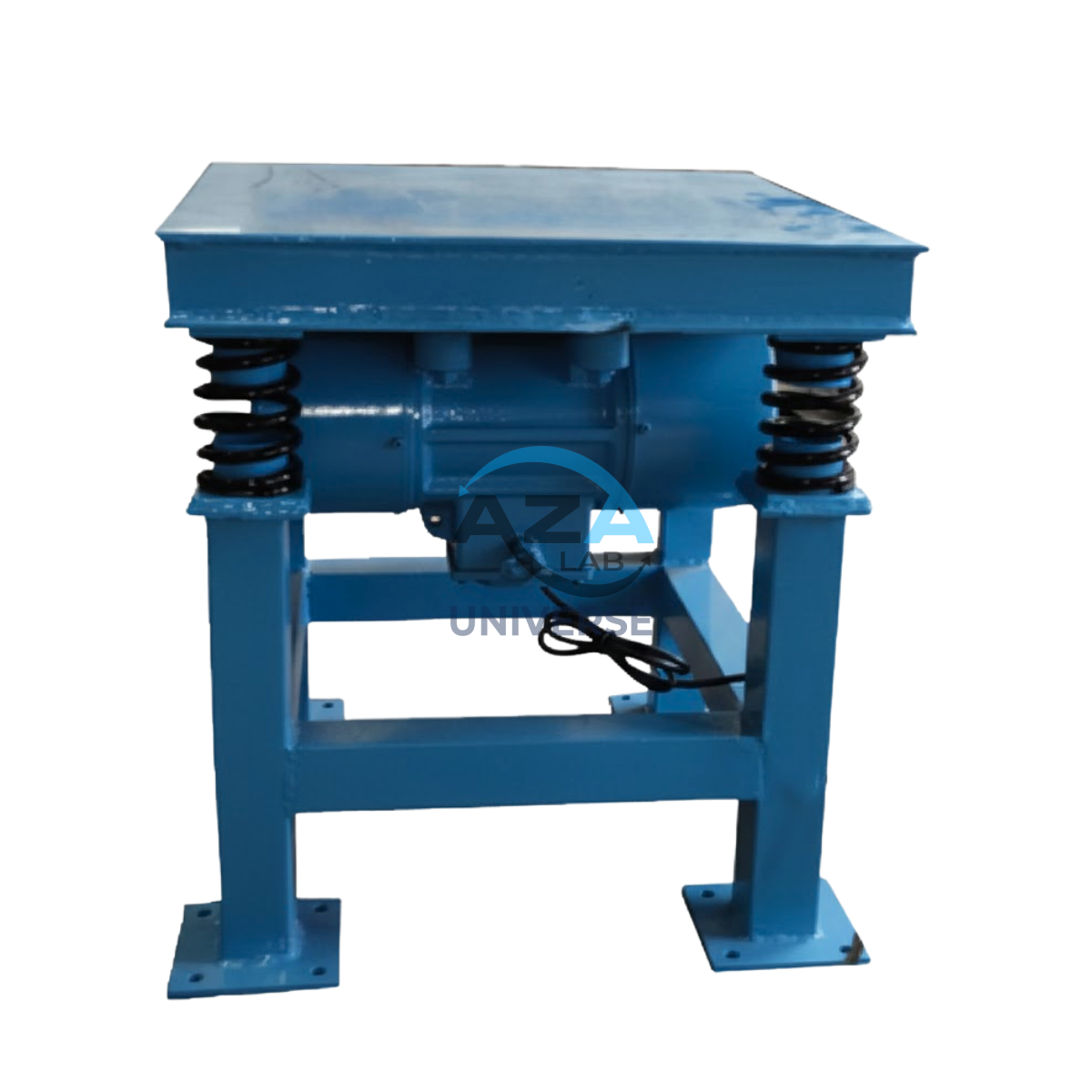

VIBRATING TABLE AZA1168
The AZA1168 Vibrating Table is a high-performance compaction system engineered to deliver consistent, uniform, and reliable consolidation of concrete in laboratory molds. Designed for civil engineering labs, QA/QC departments, material testing facilities, and construction R&D centers, this unit ensures effective removal of entrapped air and improves density in freshly cast specimens—resulting in stronger and more accurate test samples.
Built with a robust steel platform and powered by a 1 HP heavy-duty motor, the AZA1168 delivers adjustable vibration frequency up to 3600 VPM, allowing technicians to fine-tune compaction based on slump, mix design, and mold size. The table is mounted on vibration-absorbing rubber pads, which improve stability, reduce external vibration transfer, and minimize operational noise.
The table supports a variety of concrete molds including:
• 150 mm cube molds
• 150 mm × 300 mm cylinder molds
• 100 mm × 100 mm × 500 mm beam molds
• Multiple molds simultaneously for high-throughput testing
Engineered for precision and durability, the AZA1168 complies with IS 10086:1982, ASTM C192, and IS 516 (Part 2) requirements for laboratory compaction of concrete specimens.
Description
Key Features & Benefits
High-Performance Compaction
• Adjustable vibration frequency (0 – 3600 VPM)
• Ensures uniform distribution of concrete and eliminates air voids
• Suitable for low- to high-workability mixes
Robust Construction
• Heavy-duty steel platform
• Vibration-isolated base with rubber pads
• Precision-balanced motor for smooth operation
Versatile Mold Compatibility
• Supports cube, beam, and cylinder molds
• Accommodates multiple specimens simultaneously
• Ideal for routine QC testing and R&D applications
Laboratory & On-Site Use
• Designed primarily for labs
• Can also be used in field setups with stable power supply and level surfaces
Standards Compliance
• IS 10086 – Specification for Concrete Moulds
• ASTM C192 – Making and Curing Concrete Test Specimens in the Laboratory
• IS 516 (Part 2) – Concrete Testing Procedure Guidelines
Specifications
| Feature | Specification |
|---|---|
| Model | AZA1168 |
| Table Surface Area | 750 mm × 500 mm |
| Vibration Frequency | Adjustable (0 – 3600 vibrations/min) |
| Motor Power | 1 HP |
| Load Capacity | Up to 140 kg |
| Mounting | Anti-vibration rubber pads |
| Voltage Supply | 230V AC, 50 Hz |
| Compliance | IS 10086, ASTM C192 |
| Weight | Approx. 80 kg |
Applications
• Civil engineering material testing laboratories
• Precast concrete manufacturing QC
• Construction quality control departments
• Universities and engineering institutions
• R&D facilities for concrete and cementitious materials
Frequently Asked Questions (FAQ)
Q1: What types of molds can this table support?
It supports cube molds, beam molds, cylinder molds, and various concrete specimen molds.
Q2: Is the vibration frequency adjustable?
Yes. The motor speed can be adjusted to modify vibration intensity as required.
Q3: Can it be used on-site?
Yes, provided there is a level surface and stable 230V power supply.
Q4: Does it need special installation?
No. Place on a stable floor, plug in, and operate.
Q5: Is it compliant with BIS and ASTM standards?
Yes. It complies with IS 10086, ASTM C192, and IS 516 Part 2.
Additional information
| Model |
AZA 1168 |
|---|---|
| Table Surface Area |
750 mm x 500 mm |
| Vibration Frequency |
Adjustable (0 – 3600 vibrations/min) |
| Compliance |
IS 10086, ASTM C192 |
| Weight |
Approx. 80 kg |
