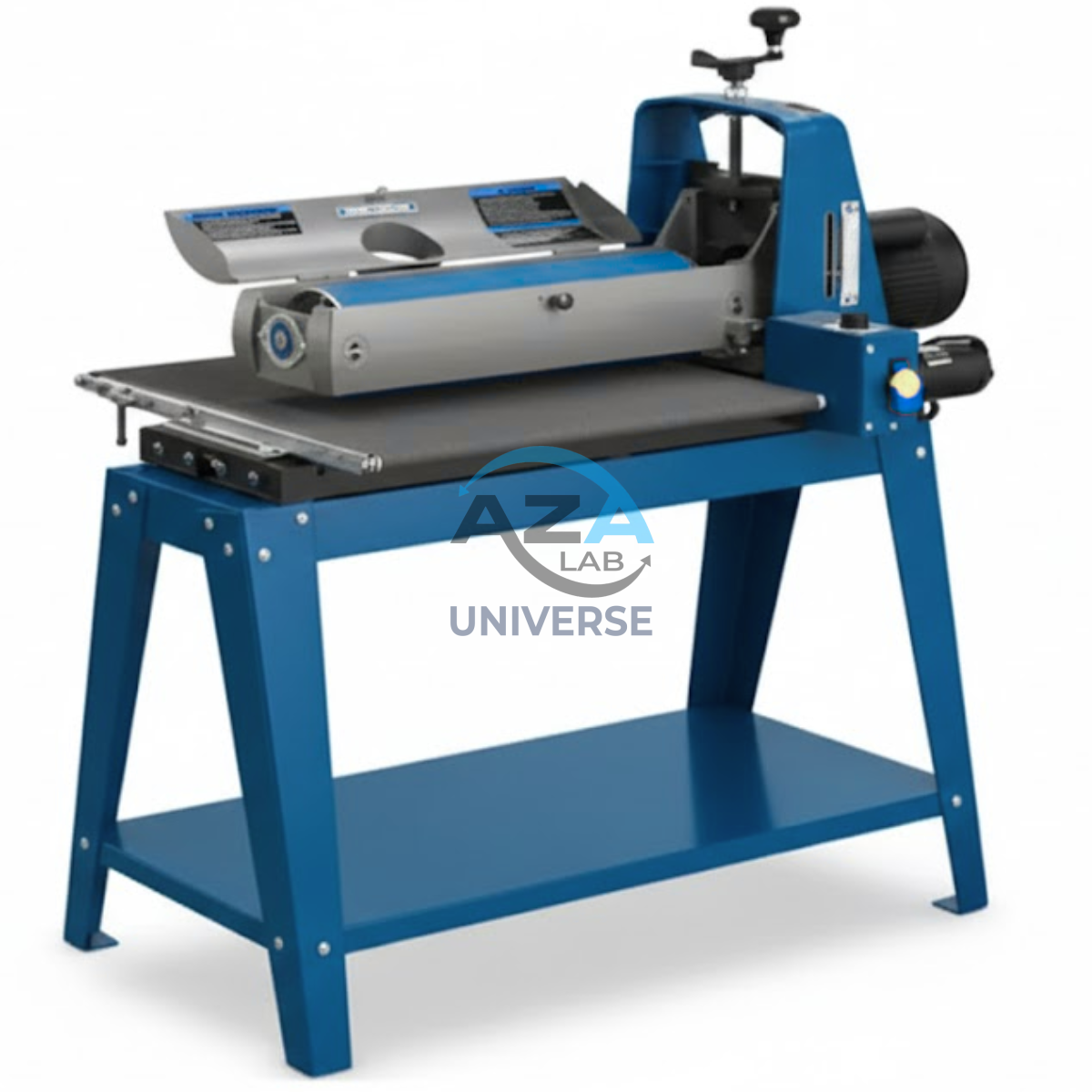

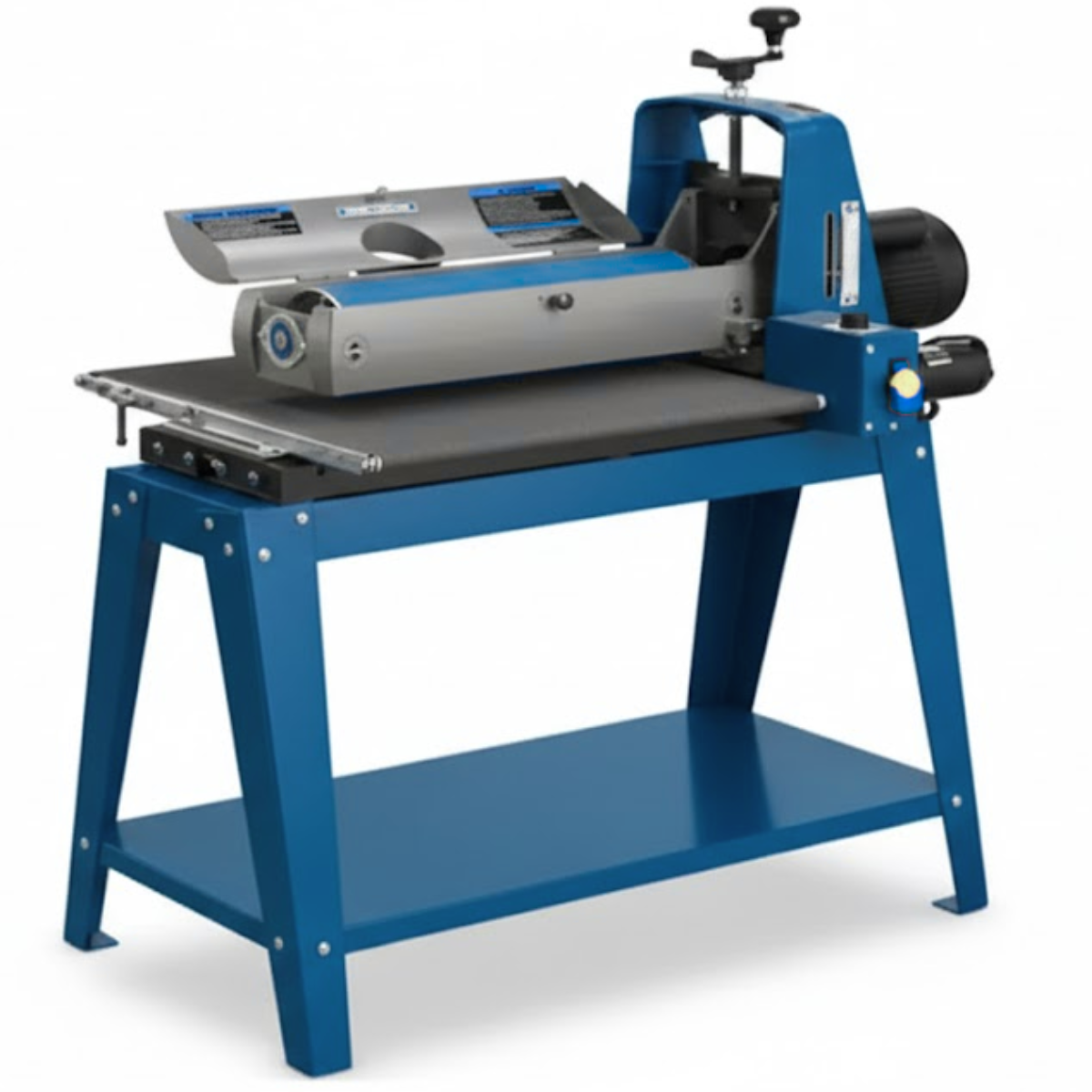

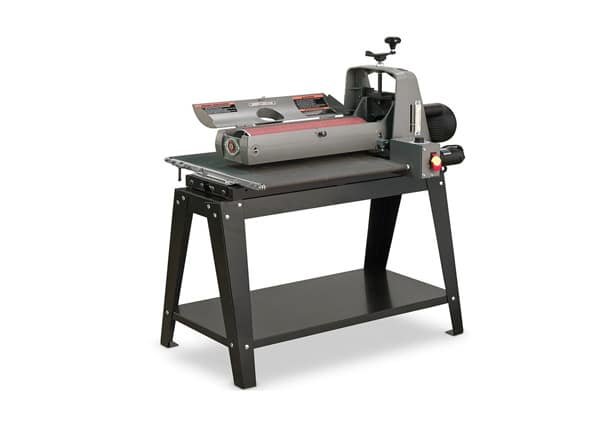

WOOD WORKING DRUM SANDER AZA1239
The AZA LAB Wood Working Drum Sander AZA1239 is a high-performance sanding solution engineered for efficient, accurate, and consistent surface finishing of large wooden panels. Designed for both professional woodworking shops and serious hobbyists, this machine is capable of sanding panels up to 50 inches wide in two passes, delivering smooth, uniform results with minimal effort.
Powered by a 1-3/4 HP drum motor, the AZA1239 combines intelligent load management, precision conveyor control, and rugged construction to ensure superior sanding quality across a wide range of materials.
Description
Key Features
Powerful 1-3/4 HP Drum Motor
Provides consistent torque and smooth sanding performance, even on hardwoods and wide panels.
Wide Sanding Capacity
-
25″ sanding width in a single pass
-
Up to 50″ sanding width in two passes
Sandsmart™ Technology
Continuously monitors the load on the drum motor and automatically adjusts the conveyor feed rate to prevent overload, ensuring optimal finish quality and protecting the machine.
Precision Conveyor System
Heavy-duty conveyor pulls the workpiece smoothly through the sander, minimizing snipe and ensuring uniform material removal.
Variable Speed Control
Adjustable feed rate up to 10 feet per minute, allowing precise control for different materials and sanding requirements.
Tool-Free Drum Parallelism Adjustment
Simple knobs allow quick alignment of the drum parallel to the table, eliminating crowning and sanding lines on wide panels.
Tool-Free Abrasive Changes
Quick-change abrasive clips enable fast belt replacement without tools, reducing downtime.
Optimized Dust Collection
Efficiently designed dust hood directs chips and dust toward the 4″ dust port for cleaner operation.
Durable Industrial Construction
-
Reinforced steel conveyor bed
-
Precision-machined extruded aluminum drum
-
Separate feed and drum motors for independent control
Convenient Stand Design
Supplied with a sturdy stand featuring leveling feet and a storage shelf for accessories.
Key Benefits
-
Sands wide panels quickly and uniformly
-
Prevents motor overload with intelligent feed control
-
Reduces snipe and surface defects
-
Easy setup, adjustment, and maintenance
-
Suitable for furniture panels, doors, tabletops, and boards
Technical Specifications
| Specification | Details |
|---|---|
| Model No. | AZA1239 |
| Machine Type | Wood Working Drum Sander |
| Drum Motor Power | 1-3/4 HP |
| Maximum Sanding Width (Single Pass) | 25″ |
| Maximum Sanding Width (Two Passes) | 50″ |
| Drum Diameter | 5″ |
| Drum Speed | 1,720 RPM |
| Feed Rate | 0 – 10 feet per minute |
| Conveyor Motor | DC motor, 43 in-lbs torque |
| Conveyor Belt Material | Reinforced steel |
| Dust Port Diameter | 4″ |
| Depth Scale | Relative |
| Adjustable Tension Rollers | Yes |
| Machine Dimensions | 60″ × 24″ × 51″ |
| Approx. Weight | 230 lbs |
Applications
-
Furniture panel sanding
-
Door and tabletop finishing
-
Cabinet components
-
Wide board thickness sanding
-
Professional and advanced woodworking shops
Why Choose AZA1239?
-
Wide sanding capacity with minimal passes
-
Intelligent Sandsmart load management
-
Precision-built for smooth, repeatable results
-
Heavy-duty construction for long-term reliability
-
Trusted AZA LAB woodworking technology
