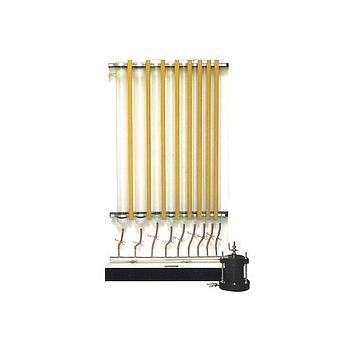

IS 2720 (PART XVII) Specification: Same as AZA 0876 but instead of a set of three glass stand pipes a stand with nine glass tubes of 6mm, 10mm, 20mm, 25mm, 40mm, 50mm, 60mm, 70mm, 75mm, bore tube is provided with over flow arrangement for constant head tests. The remaining tubes are used for falling head test.

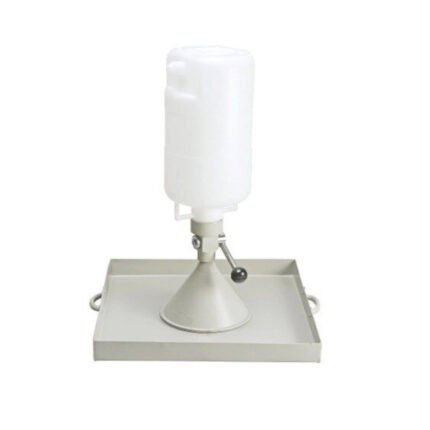

ASTM D 1556- AASHTO T 191 Specification: Used to determine the in-situ density of fine grained compacted soil. The test consist in digging a hole into the ground and then collect, dry and weight the sampled soil. The hole is then filled with dry sand from the cone container. The apparatus consist of a double metal cone, one plastic 5 lts jar & a metal tray with centre hole. Size of the cone is 6½” (165.1mm) Note: On request 12” (305 mm) Sand Density Cone Apparatus is also supplied at an extra cost.

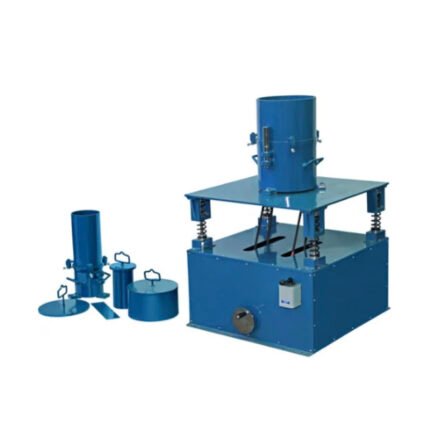

IS 2720 (PART XIV), ASTM D 4253 & ASTM D 4254 The equipment is used for the determination of the relative density of cohesion less free draining soils and meets the essential requirements Specification: The equipment consists one each of: Vibratory table, with a cushioned steel vibrating decks about 75cm x 75cm. It has a frequency of approximately 3600 vibratory table, minute under a 11.5kg load. Amplitude is variable in between 0.65mm in step of 0.05 to 0.25mm, 0.25 to 0.45 mm and 0.45 to 0.65mm. Suitable for operations on 415V, Three Phase supply. Cylindrical metal unit weight mould, 3000ml capacity. Guide sleeve with clamp assembly. Surcharges base plate for mould. Handle for surcharge base plate. Surcharge weight. The total weight together with surcharge base plate and handle is equipment to 140 kg. / cm2. For mould. Cylindrical metal unit weight mould 15000 ml. capacity. (Total weight together with the above mould & surcharge weight is equivalent to 140 kg./ cm2) dial gauge 0.01mm x 50mm travel. Extension piece 25mm for dial gauge.
