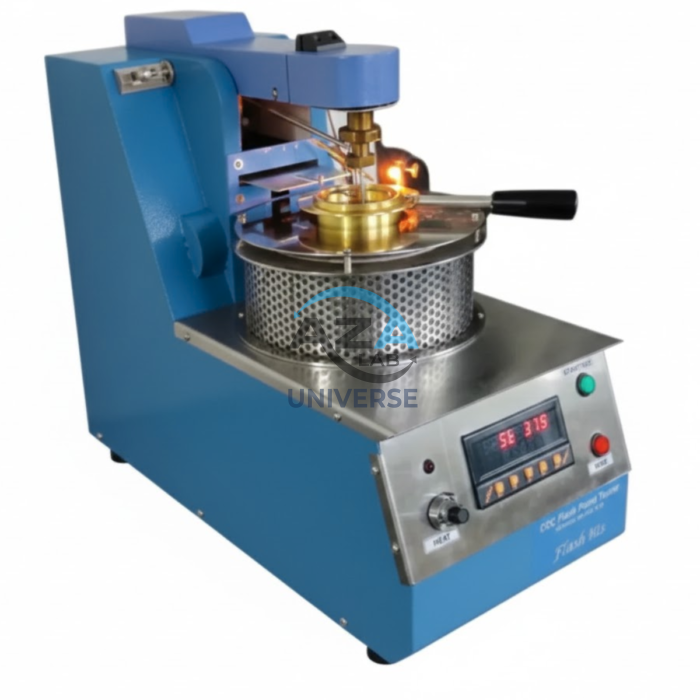

SEMI AUTOMATED CLEVELAND OPEN CUPFLASH POINT ANALYZER AZA1289
The AZA1289 Semi-Automated Cleveland Open Cup Flash Point Analyzer from AZA Lab is engineered for accurate, repeatable determination of flash and fire points of petroleum products, lubricants, and other combustible liquids. Designed in full compliance with ASTM D92 and ISO 2592, this analyzer provides an optimal balance between automation, operator control, and cost efficiency.
The Cleveland Open Cup (COC) method is the globally accepted reference method for determining flash and fire points of materials with flash points above 79°C, making AZA1289 ideal for routine quality control, safety assessment, and regulatory testing in laboratory environments.
Description
Reliable Flash & Fire Point Determination
The flash point represents the lowest temperature at which vapors ignite momentarily when exposed to an ignition source, while the fire point indicates sustained combustion. These parameters are critical for evaluating fire hazards, storage safety, transportation compliance, and product classification.
AZA1289 utilizes a semi-automated ignition and detection system, reducing operator dependency while maintaining flexibility during test setup. The analyzer automatically applies the ignition source at programmed temperature intervals, while a sensitive flame detection system identifies flash and fire points with high accuracy.
Key Features
ASTM D92 & ISO 2592 Compliance
-
Fully conforms to Cleveland Open Cup (COC) test requirements
-
Suitable for regulatory, contractual, and quality assurance testing
Semi-Automated Operation
-
Automated ignition and flash detection
-
Manual sample cup placement for controlled operation
-
Ideal for medium- to high-throughput laboratories
Uniform Heating System
-
Thermostatically controlled aluminum heating block
-
Ensures stable and uniform temperature ramp as per ASTM protocol
Digital Control & Monitoring
-
Digital temperature display with high-accuracy thermocouple
-
Programmable heating rate and ignition timing
-
Automatic test termination upon flash detection
Robust & Safe Design
-
Stainless steel sample cup (75 ml), corrosion resistant and easy to clean
-
Over-temperature protection and ignition shielding
-
Gas cut-off and temperature limiter for enhanced safety
Compact Benchtop Configuration
-
Space-saving design suitable for standard laboratory benches
-
Low maintenance and long service life
Typical Applications
-
Petroleum Refineries
-
Lubricant Manufacturing Plants
-
Fuel Quality Control Laboratories
-
Chemical & Solvent Testing Facilities
-
Fire & Transport Safety Departments
-
Academic & Industrial R&D Laboratories
Technical Specifications
| Feature | Specification |
|---|---|
| Model | AZA1289 |
| Test Method | Cleveland Open Cup (ASTM D92, ISO 2592) |
| Flash Point Range | Ambient to 400°C |
| Fire Point Detection | Yes |
| Sample Cup Capacity | 75 ml |
| Heating Rate | Programmable, ASTM D92 compliant |
| Ignition Source | Electric or gas, automatic |
| Temperature Measurement | Digital display with thermocouple |
| Safety Systems | Over-temperature shutoff, ignition shield |
| Power Supply | 230V AC, 50/60 Hz |
| Dimensions (W × D × H) | 320 × 380 × 400 mm |
| Net Weight | 13 kg |
Why Choose AZA1289
-
Proven ASTM D92 compliant performance
-
Improved accuracy over manual COC testers
-
Reduced operator error with semi-automation
-
Cost-effective alternative to fully automated systems
-
Durable construction for long-term laboratory use
Frequently Asked Questions (FAQ)
Q1: What makes AZA1289 semi-automated?
Heating and ignition are automated, while sample placement and cup handling remain manual, offering flexibility with improved accuracy.
Q2: Is it suitable for high flash point products?
Yes. It is designed for materials with flash points above 79°C, including oils, lubricants, and fuels.
Q3: Does it comply with international standards?
Yes. AZA1289 fully complies with ASTM D92 and ISO 2592.
Q4: How does it differ from a manual COC tester?
Unlike manual units, AZA1289 features automatic ignition, programmable heating, and digital temperature monitoring, improving safety and repeatability.
Q5: Is it suitable for routine QC testing?
Absolutely. It is ideal for daily quality control, compliance testing, and safety evaluation.
Model: AZA1289 – Semi-Automated Cleveland Open Cup Flash Point Analyzer
Additional information
| Test Method |
Cleveland Open-Cup (ASTM D92) |
|---|---|
| Flash Point Range |
Ambient to 400°C |
| Fire Point Detection |
Yes |
| Sample Cup Capacity |
75 ml |
-
Automated operation with an 8.4″ touchscreen, easy one-click start, and audible alerts on completion
-
Rapid heating modes: Standard, rapid, or user-defined rates (1–20 °C/min)
-
Versatile ignition: Switch easily between gas or electric igniter sources
-
Unknown sample detection: Built-in “search” mode to automatically locate flash point in unmarked samples
-
Safety & precision: Automatic barometric pressure correction and comprehensive interlocks ensure reliable operation
-
Power: 230 VAC, 50 Hz, 1.5 kW
-
Heating: 1000 W coil heater (230 V) with precise thermal profiling
-
Cooling: Integrated centrifugal blower (56.5 CFM) for rapid cooldown
-
Measurement: PT100 Class A sensors on sample (0–400 °C) and bath (0–500 °C); ionization ring flash detection; ambient pressure range: 700–1100 hPa
-
Dimensions & Weight: W 410 × D 420 × H 330 mm; approx. 16 kg
-
Environmental: Operational in 10–35 °C at ≤80% RH
