AZA 1163 CAPPING SET (HORIZONTAL)
- Horizontal design for precise cube alignment
- Prepares flat, parallel ends for strength testing
- Supports 150mm concrete cube specimens
- Heavy-duty steel body for lab use
- Compatible with sulfur and gypsum caps
- Conforms to ASTM C617, IS 516 standards
Description

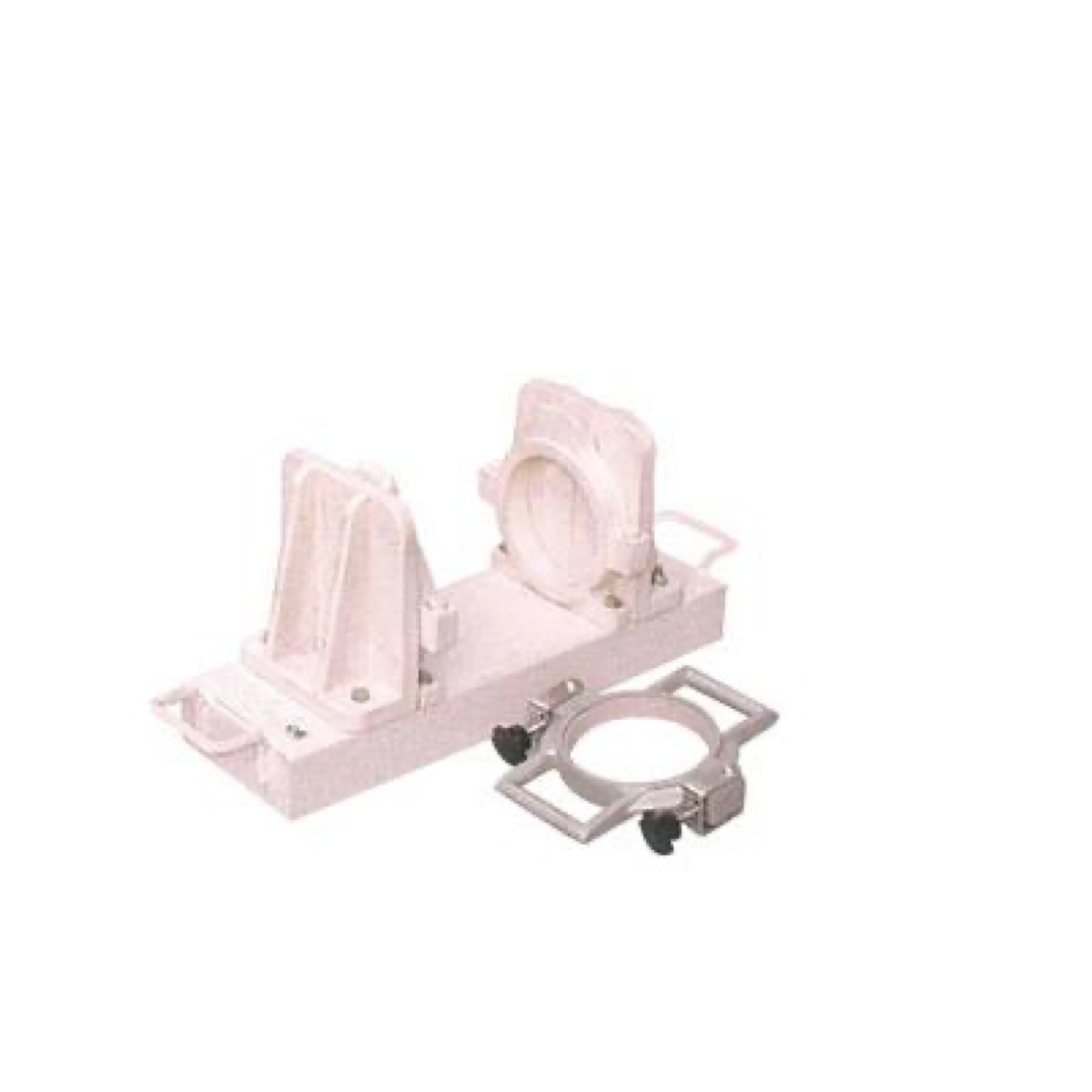

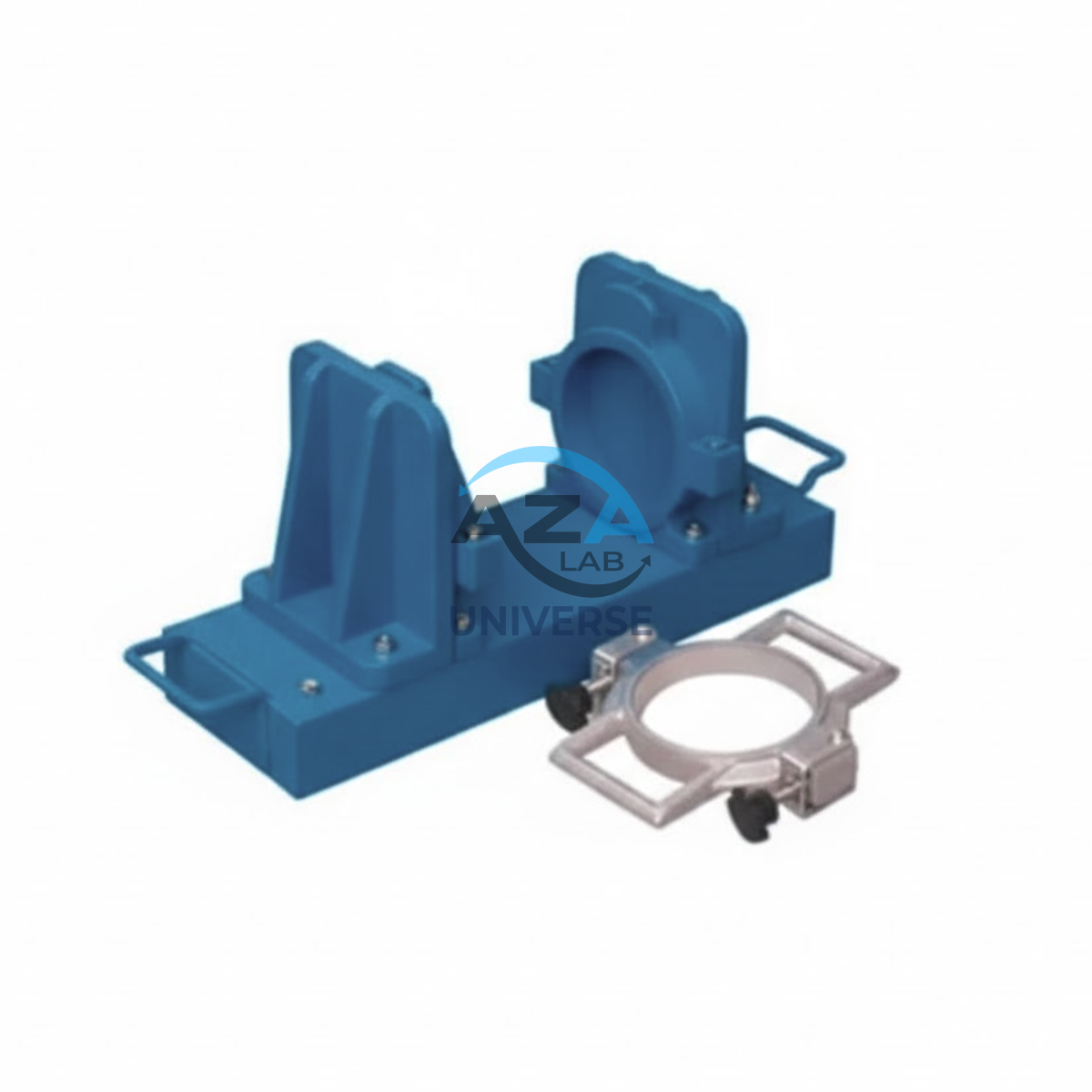

Capping Set (Horizontal) is a specialized apparatus used to prepare concrete cube specimens for compressive strength testing by ensuring flat and parallel surfaces. This horizontal version of the capping set is ideal for labs that prioritize ergonomic operation and efficient handling during the capping process.capping set horizontal, concrete cube capping tool, concrete lab equipment, ASTM C617 compliant tool.
The Horizontal Capping Set holds the cube specimen in a horizontal orientation, allowing easy access to the cube ends for application of a capping compound such as molten sulfur or gypsum-based materials. This ensures the load during testing is applied uniformly across the flat and level faces of the specimen—greatly enhancing test accuracy and repeatability.
Designed for 150mm concrete cube samples, the horizontal capping set consists of a heavy-duty steel frame fitted with a precision-machined cube holder. The specimen is positioned on its side and held securely in place, while the operator pours the capping compound onto the exposed surface. After the first side is capped and hardened, the cube is rotated to repeat the process on the opposite face. Once both ends are properly capped and cured, the specimen is ready for testing in a Universal Testing Machine (UTM).capping set horizontal, concrete cube capping tool, concrete lab equipment, ASTM C617 compliant tool.
The horizontal orientation is particularly useful for labs with higher throughput, as it allows the operator to move quickly between samples without excessive repositioning. This design also improves safety when handling molten sulfur, as the horizontal setup offers better control over the pour and reduces the risk of spills.
The structure is fabricated using powder-coated steel to resist corrosion and wear, even under intensive lab use. The non-slip base ensures the apparatus remains stable during operation. The cube holder slots are designed with precise tolerances to maintain alignment and prevent tilt or movement during the capping process.
The AZA-LAB Horizontal Capping Set is a trusted tool for concrete testing laboratories, research institutions, construction quality control departments, and educational establishments conducting regular strength testing of concrete specimens. It meets the essential criteria outlined in testing standards such as ASTM C617 and IS 516, which mandate that concrete test specimens must have level and parallel ends to ensure reliable compressive strength results.
To better understand the standardized capping process, refer to ASTM C617 – Standard Practice for Capping Cylindrical Concrete Specimens.
Specifications:
| Parameter | Details |
|---|---|
| Suitable Cube Size | 150 mm |
| Cube Orientation | Horizontal |
| Frame Material | Powder-coated steel |
| No. of Cube Slots | 1 (single specimen capacity) |
| Surface Support | Precision-machined steel base |
| Operation | Manual with molten sulfur or gypsum |
| End Surface Requirement | Level and parallel |
| Standards Compliance | ASTM C617, IS 516 |
FREQUENTLY ASKED QUESTIONS (FAQ):
Q1. Why choose a horizontal capping set over vertical?
A horizontal capping set provides better ergonomic handling, especially during molten sulfur application, and speeds up workflow in high-volume labs.
Q2. Can this be used with cylindrical concrete samples?
No, this set is designed specifically for 150mm concrete cubes. Use a separate fixture for cylindrical specimens.
Q3. What kind of capping compounds are compatible?
Both molten sulfur and gypsum-based capping materials can be used, depending on the standards you’re working with.
Q4. Does the apparatus meet industry standards?
Yes, it conforms to ASTM C617 and IS 516 requirements for specimen preparation.
Q5. How should the tool be maintained?
Clean after each use, especially when using molten compounds. Store in a dry place to prevent corrosion and ensure long-term accuracy.
Additional information
| Suitable Cube Size |
150 mm |
|---|---|
| Cube Orientation |
Horizontal |
| Frame Material |
Powder-coated steel |
| No. of Cube Slots |
1 (single specimen capacity) |
