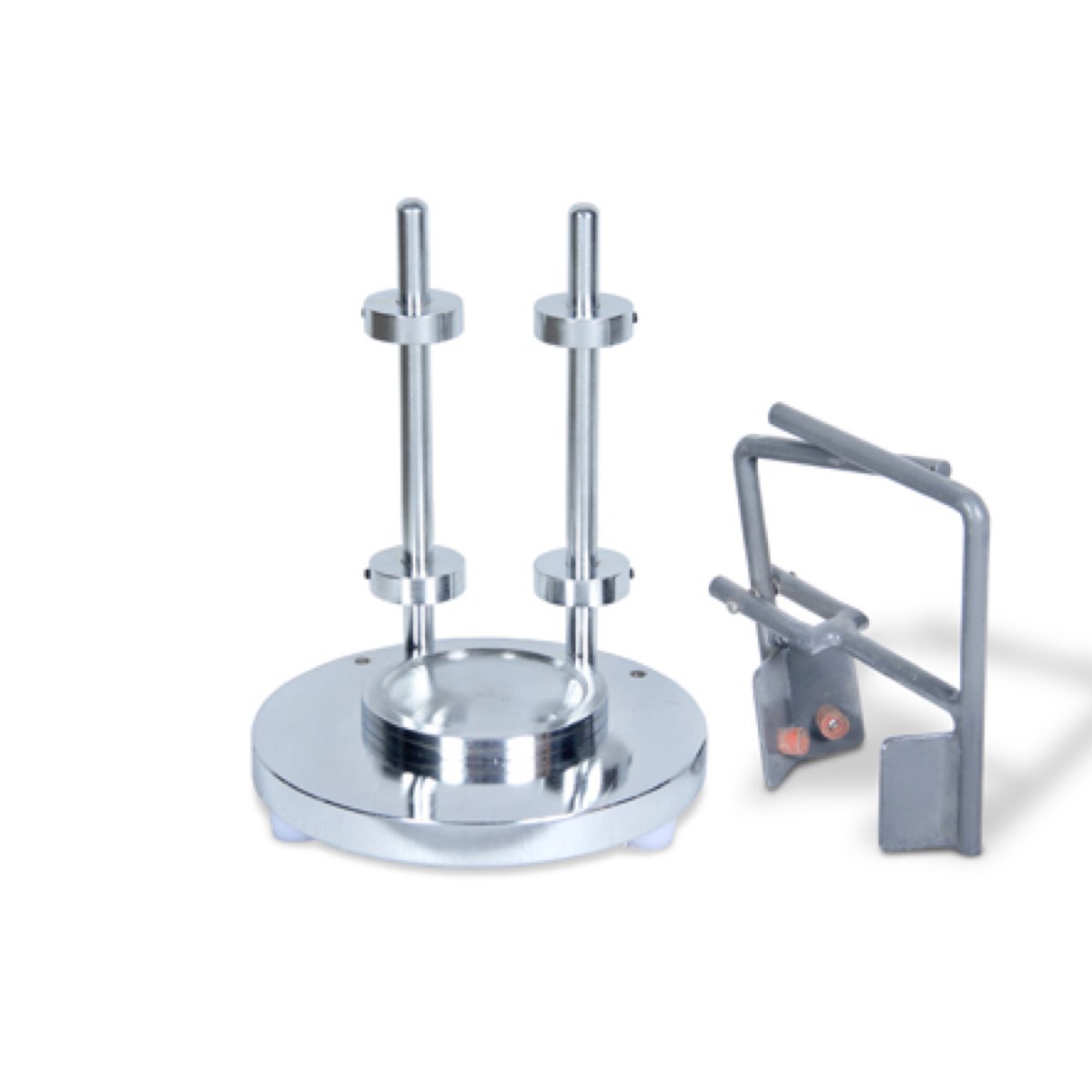

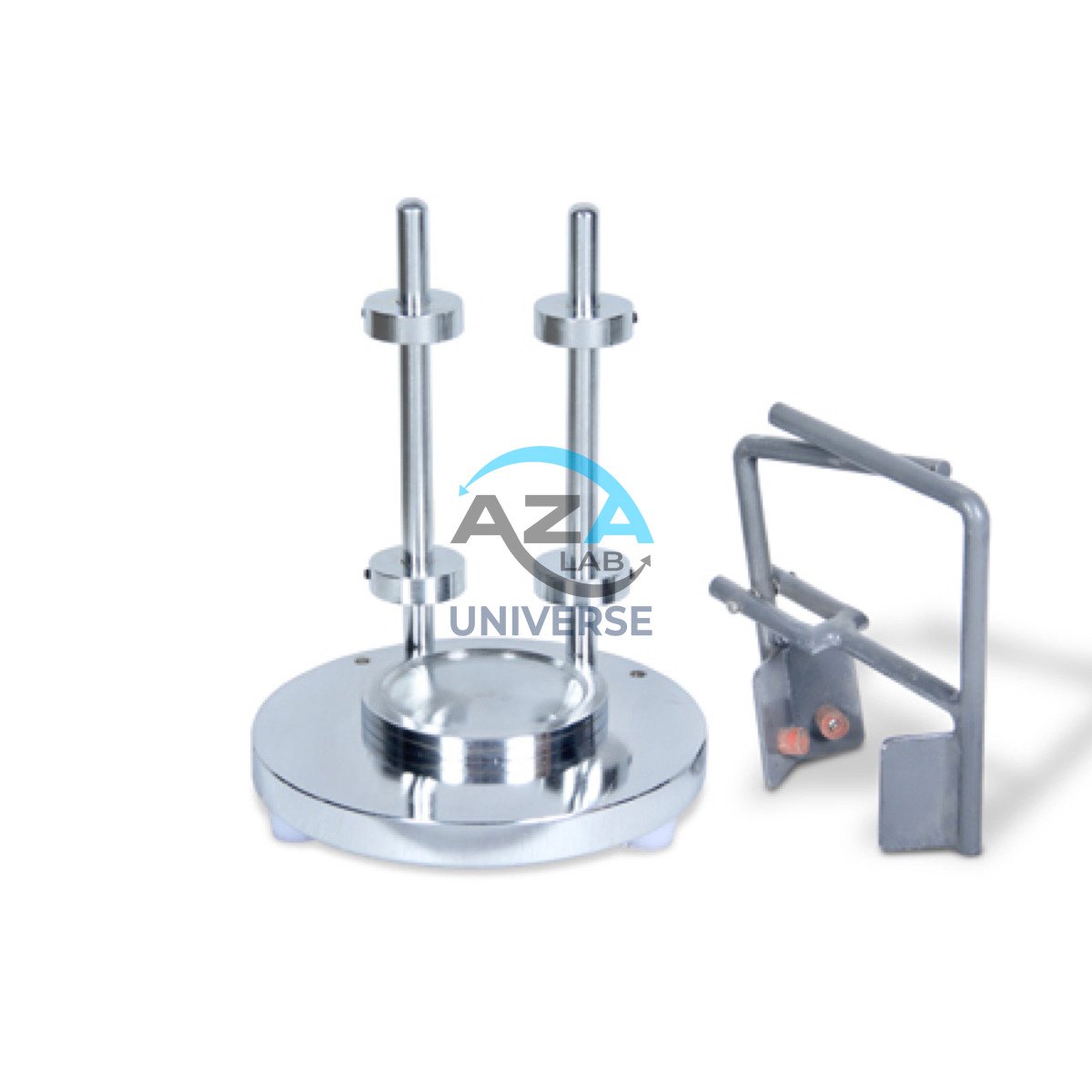

CAPPING SET (VERTICAL) AZA1164
The AZA-LAB Vertical Capping Set is a precision tool designed to prepare 150 mm concrete cube specimens with smooth, level, and parallel end surfaces prior to compressive strength testing. By holding the specimen upright and ensuring perfect alignment, this apparatus enables consistent and accurate results in accordance with ASTM C617 and IS 516.
Purpose & Function
During compressive strength testing, concrete cubes must have properly prepared surfaces to guarantee uniform load transfer between the testing platens. Any irregularity can cause stress concentrations or premature failure. The Vertical Capping Set provides a stable, guided fixture that maintains the cube in a perfect vertical orientation while capping compound is applied to each end.
Once sulfur or gypsum-based capping material is poured and allowed to harden, the ends become flat, parallel, and ready for precise compression testing in a Universal Testing Machine (UTM).
Description
Robust Construction & Accurate Positioning
Built using heavy-duty, powder-coated steel, the vertical capping set offers excellent resistance to wear, corrosion, and heavy laboratory usage. The precision-machined cube slot ensures that the specimen remains centered and upright with zero lateral shift. Its vertical design saves bench space and supports a more efficient workflow, especially in high-volume laboratories.
The setup features:
• A rigid, open-frame structure for easy cleaning
• Non-slip rubber-coated base for stability during operation
• Guided alignment system for accurate cube positioning
This design minimizes handling errors, improves operator safety, and enables fast, repeatable capping.
Applications
• Construction and QA/QC laboratories
• Independent testing labs
• Ready-mix and precast concrete plants
• Engineering colleges and research institutions
• Infrastructure testing centers
Specifications
| Parameter | Details |
|---|---|
| Suitable Cube Size | 150 mm |
| Frame Material | Powder-coated steel |
| Cube Alignment | Vertical (upright orientation) |
| Cube Slots | 1 (single station) |
| Base Support | Non-slip rubber footing |
| Operation Type | Manual capping using sulfur/gypsum compound |
| End Surface Requirement | Flat, level, parallel surfaces |
| Compliance | ASTM C617, IS 516 |
Frequently Asked Questions (FAQ)
Q1. Why is capping required before compressive strength testing?
Capping ensures both ends of the cube are flat and parallel, enabling uniform load distribution and improving result accuracy.
Q2. What compounds can be used with this capping set?
Sulfur-based compounds and gypsum-based materials are commonly used, depending on the testing standard and preference.
Q3. Can this tool be used for cylindrical specimens?
No. This model is exclusively for 150 mm concrete cubes. Dedicated cylinder capping sets are available separately.
Q4. Is the frame durable and corrosion-resistant?
Yes. The powder-coated steel structure and corrosion-resistant fittings ensure long service life, even under intensive use.
Q5. Does the set meet industry standards?
Yes. It complies fully with ASTM C617 and IS 516 for concrete specimen preparation.
Additional information
| Suitable Cube Size |
150 mm |
|---|---|
| Frame Material |
Powder-coated steel |
| Cube Alignment |
Vertical (Upright Positioning) |
| No. of Cube Slots |
1 (single station) |
