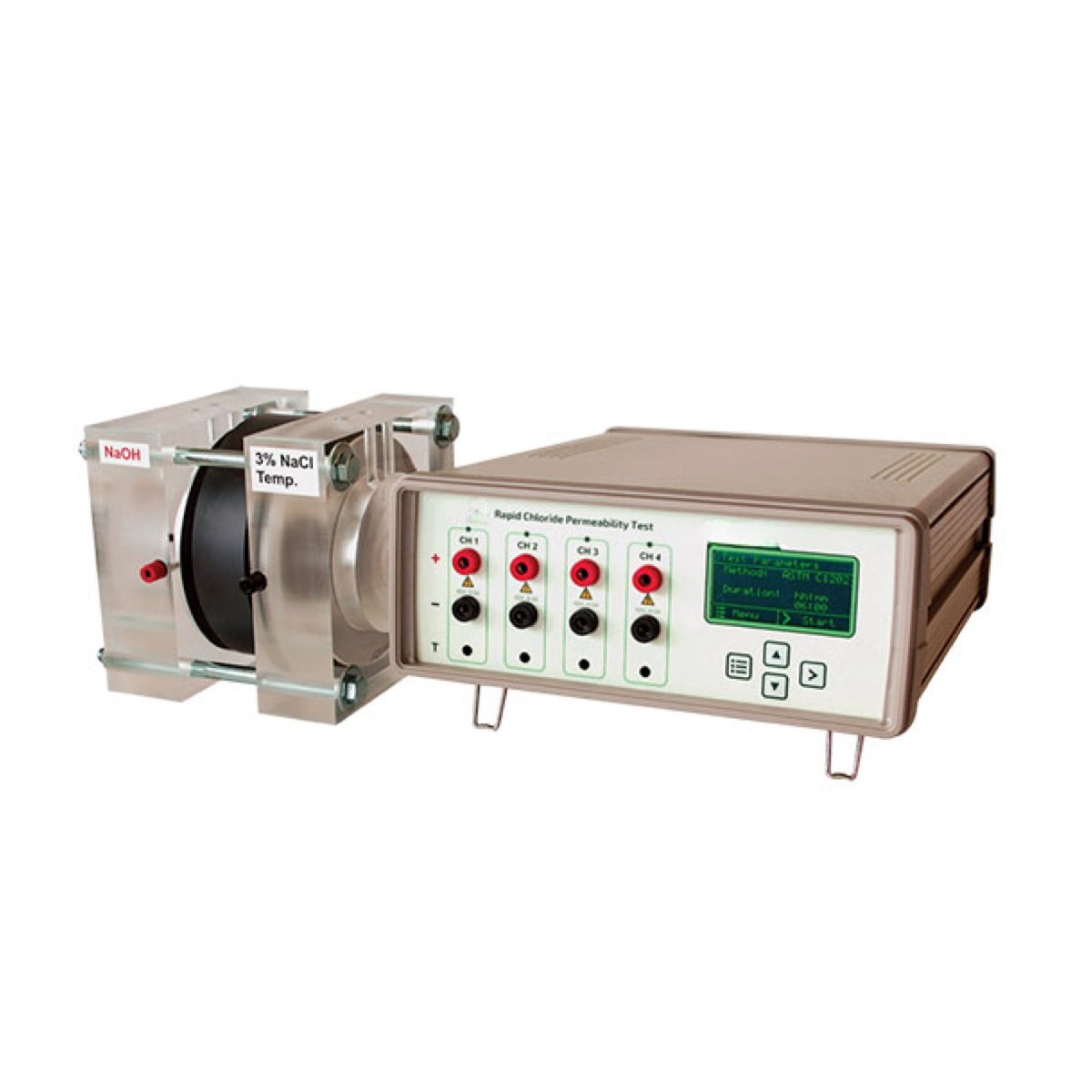

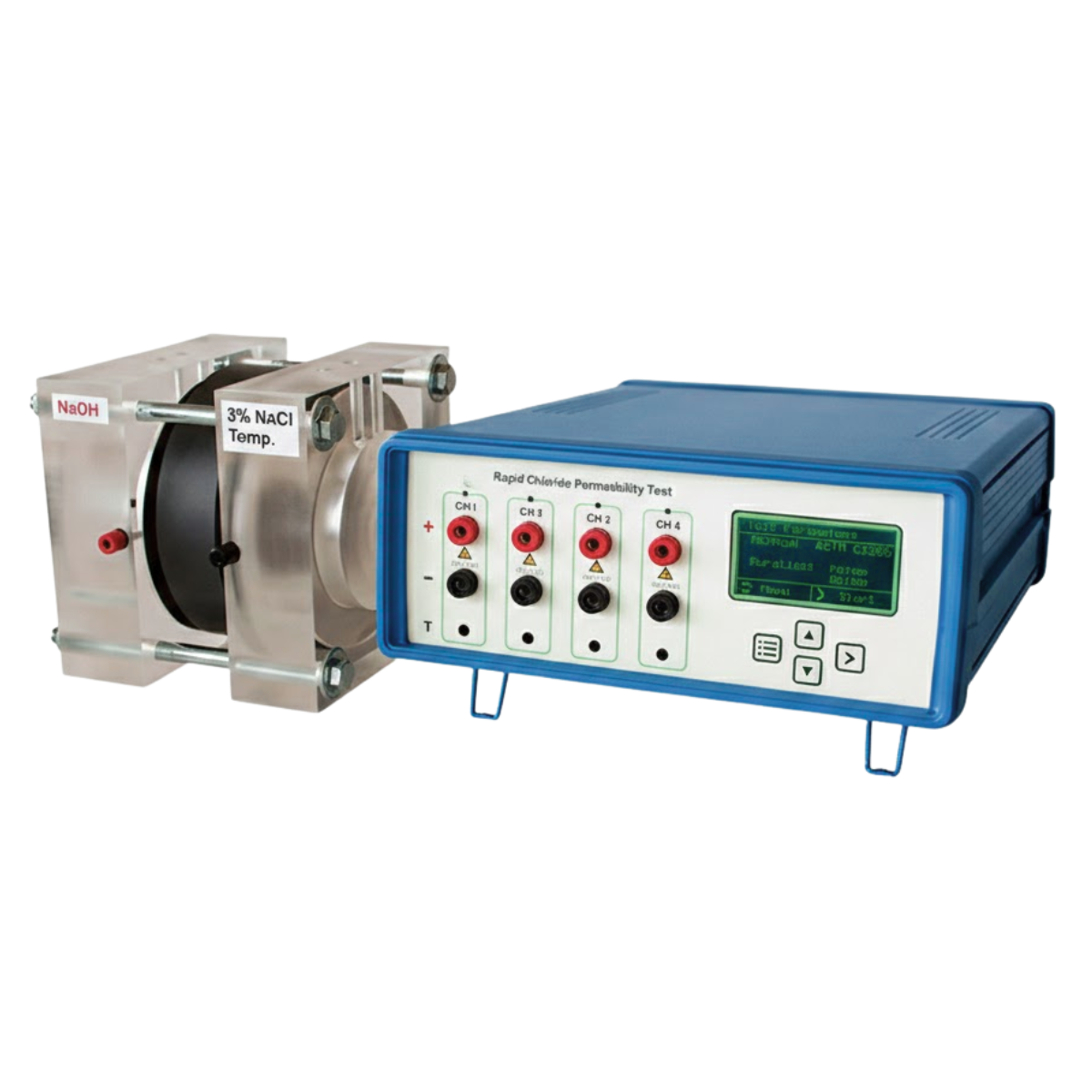

RAPID CHLORIDE PERMEABILITY TESTER AZA1144

Advanced Six-Cell System for Concrete Durability Evaluation
ASTM C1202 Compliant – Rapid Chloride Ion Penetration Testing

The AZA1144 Rapid Chloride Permeability Tester is a high-precision durability assessment system engineered to measure the resistance of concrete to chloride ion penetration. Chloride permeability is a critical parameter in determining long-term durability, especially for structures exposed to marine environments, saltwater spray, de-icing salts, and chemical-rich industrial zones.

Designed for research laboratories, material testing centers, infrastructure quality control units, and academic institutions, the AZA1144 enables users to perform Rapid Chloride Permeability Tests (RCPT) strictly in accordance with ASTM C1202. This rapid method provides concrete permeability results within six hours, significantly reducing the time required compared to traditional testing methods.

Enquiry on WhatsApp
Category:
Description

Description

Key Features

  • Six-Cell Testing System
    Conduct up to six concrete specimens simultaneously, increasing lab throughput and comparative analysis efficiency.

  • ASTM C1202 Compliant
    Fully adheres to RCPT standards to ensure internationally accepted and reproducible test results.

  • Digital Monitoring
    Equipped with digital voltmeter and ammeter for real-time monitoring of voltage and current during the 6-hour test cycle.

  • Leak-Proof Acrylic Cells
    Includes precision-engineered acrylic test cells, sealing gaskets, and electrode chambers (anolyte & catholyte) for safe and accurate operation.

  • Safety & Protection
    Features overcurrent cut-off, thermal protection, insulated enclosure, and emergency stop systems for operational safety.

  • Durable Construction
    Stainless steel body and corrosion-resistant components ensure long-term reliability even in high-humidity laboratory environments.

  • Optional Data Logging Software
    Automatically records test data over six hours, generates graphs, and prepares ASTM-compliant test reports.

Technical Specifications

Feature Description
Model AZA1144
Test Standard ASTM C1202
Number of Cells 6
Voltage Output 0–60 V DC
Current Range 0–1000 mA per cell (digital display)
Test Duration 6 hours
Data Logging Optional PC-based software
Body Material Stainless steel with insulated panels
Cell Material High-grade acrylic with sealing gaskets
Safety Mechanisms Overcurrent protection, thermal cut-off, emergency stop
Applications Concrete durability & chloride permeability testing

Applications

  • Evaluation of chloride ion penetration in concrete

  • Durability testing for marine and coastal structures

  • QC testing in ready-mix and precast concrete plants

  • Research on admixtures, SCMs, and low-permeability concrete mixes

  • Academic and R&D laboratory investigations

  • Infrastructure projects requiring long service life

Frequently Asked Questions (FAQ)

Q1: What standard does AZA1144 follow?
It is fully compliant with ASTM C1202 for Rapid Chloride Permeability Testing.

Q2: What does RCPT evaluate?
It measures the total electrical charge (in coulombs) passed through a concrete specimen, indicating its chloride ion permeability.

Q3: How long does a test take?
Each test cycle runs for 6 hours, as specified in ASTM C1202.

Q4: Can multiple samples be tested?
Yes. The AZA1144 can test up to six specimens simultaneously.

Q5: Is data logging available?
Yes, optional PC software can record current flow, generate graphs, and produce RCPT reports.
