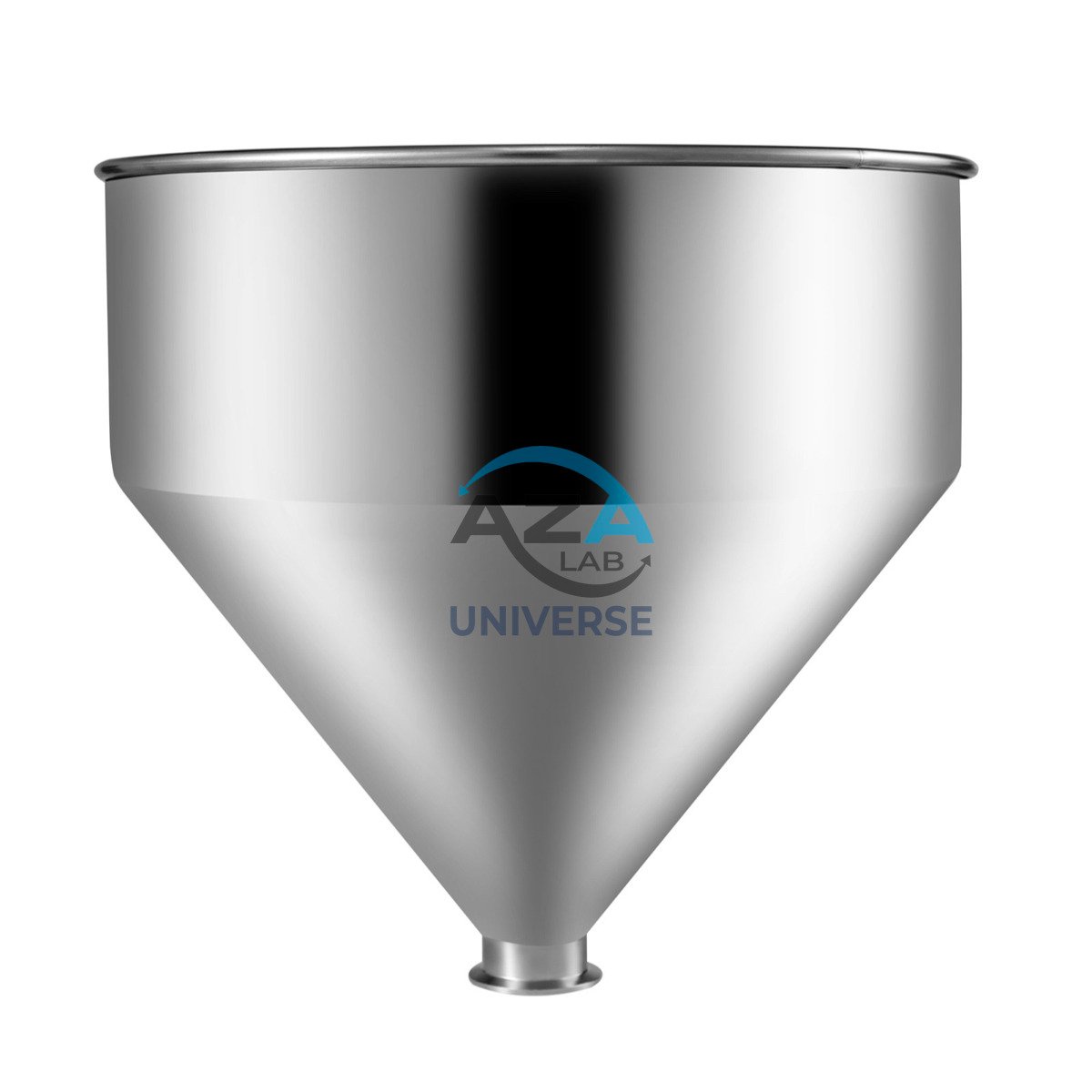

FILLING HOPPER FOR MOULD AZA1154
The AZA-LAB Filling Hopper (Model: AZA1154) is a specialized accessory engineered to enable clean, uniform, and spill-free pouring of fresh concrete into cube and cylinder moulds. Whether used in a materials laboratory or at construction sites, this hopper improves productivity and ensures consistent sample preparation for compressive and tensile strength testing.
Constructed from high-quality stainless steel or galvanized steel, the hopper features a funnel-shaped design with a wide top opening for easy loading and a precisely sized bottom outlet compatible with 100 mm and 150 mm moulds. Its corrosion-resistant construction ensures long service life even under rigorous daily use.
The smooth internal finish allows concrete to flow without sticking, helping reduce segregation and air pockets during filling. The integrated ergonomic side handle provides stable, single-person operation, ensuring proper positioning above moulds during the casting process.
Fully aligned with ASTM C192 and IS 516 best practices, AZA1154 supports standardized, repeatable specimen preparation essential for accurate strength testing.
Description
Key Features
-
Designed for 100 mm & 150 mm cube and cylinder moulds
-
Reduces spillage, waste, and segregation during pouring
-
Durable galvanized or stainless steel construction
-
Wide mouth for easy concrete loading
-
Smooth, non-stick interior for fast cleaning
-
Ergonomic handle for controlled pouring
-
Suitable for laboratories, RMC plants, field testing, QC centers
Technical Specifications
| Parameter | Value |
|---|---|
| Model No. | AZA1154 |
| Product Name | Filling Hopper for Concrete Moulds |
| Material | Galvanized Steel / Stainless Steel |
| Compatibility | 100 mm & 150 mm cube and cylinder moulds |
| Design | Funnel-type with ergonomic side handle |
| Surface Finish | Polished / powder-coated |
| Cleaning | Washable with water or concrete cleaning agents |
| Use Area | Construction sites, labs, cement testing centers |
| Dimensions | Approx. 300 mm top diameter, 50 mm bottom diameter |
| Weight | 1.5 – 2.5 kg (material dependent) |
| Standard Compliance | ASTM C192, IS 516 |
Applications
-
Filling concrete cube moulds (150 mm and 100 mm)
-
Filling cylinder moulds for compressive and split tensile tests
-
QC operations in RMC plants, site labs, research labs
-
Ensures uniform sample casting with minimal air entrapment
Available SKU
| Model No. | Description |
|---|---|
| AZA1154 | Filling Hopper for Concrete Moulds – Steel Construction |
Frequently Asked Questions (FAQ)
Q1. Can the hopper be used for both cube and cylinder moulds?
Yes. The outlet is compatible with standard 100 mm and 150 mm moulds.
Q2. Is the hopper rust-resistant?
Yes. Stainless steel and galvanized steel options offer excellent corrosion resistance.
Q3. How should the hopper be cleaned?
Rinse with water or use standard cleaning agents. The smooth interior makes cleaning simple.
Q4. Does it improve sample preparation accuracy?
Yes. It reduces overflows, segregation, and air entrapment, ensuring more accurate specimen formation.
Q5. Does it meet ASTM standards?
Yes. It aligns with ASTM C192 and IS 516 guidelines for specimen mould filling.
Additional information
| Product Name |
Filling Hopper for Concrete Moulds |
|---|---|
| Material |
Galvanized Steel / Stainless Steel |
| Compatibility |
100 mm & 150 mm cube and cylinder moulds |
| Design |
Funnel-type with ergonomic handle |
