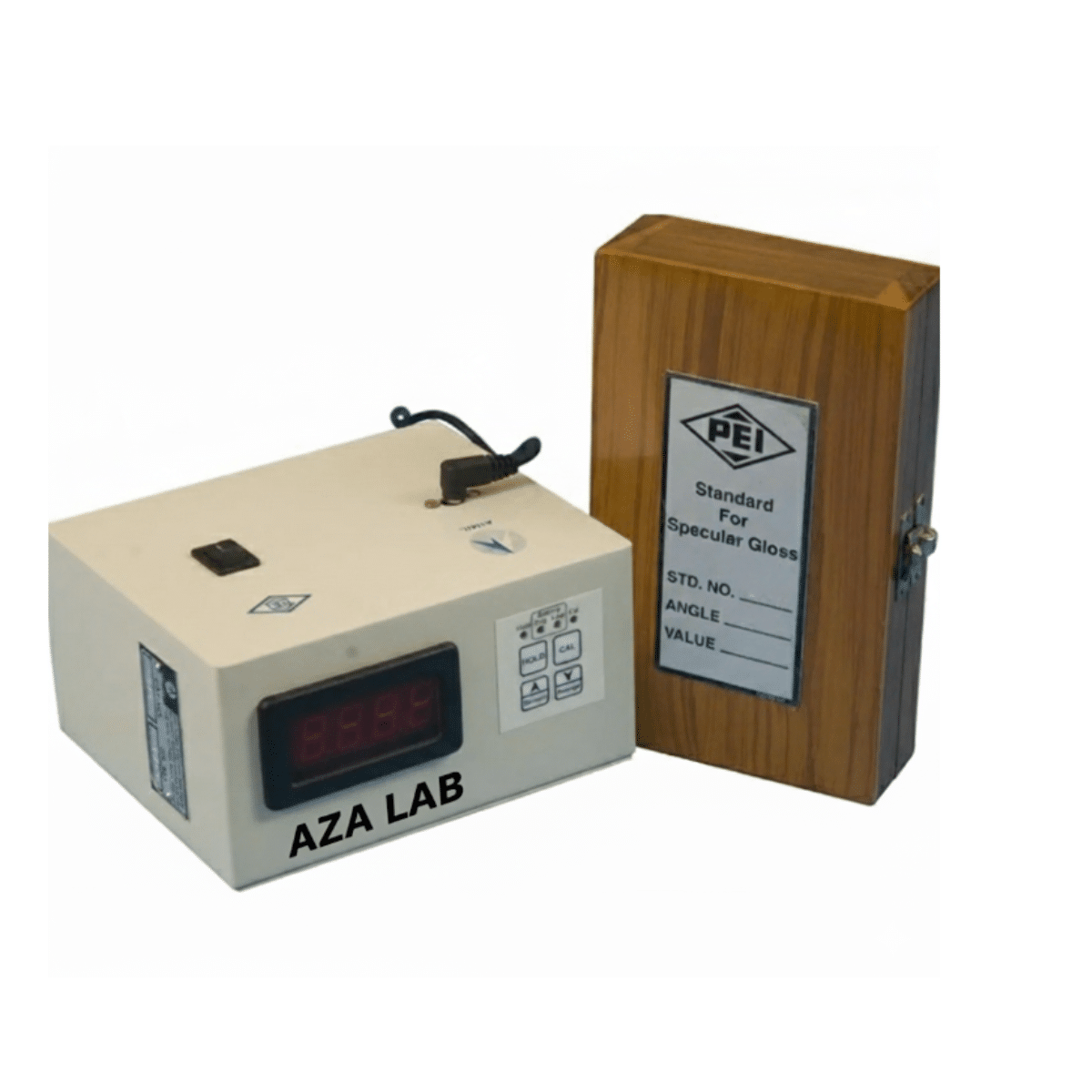

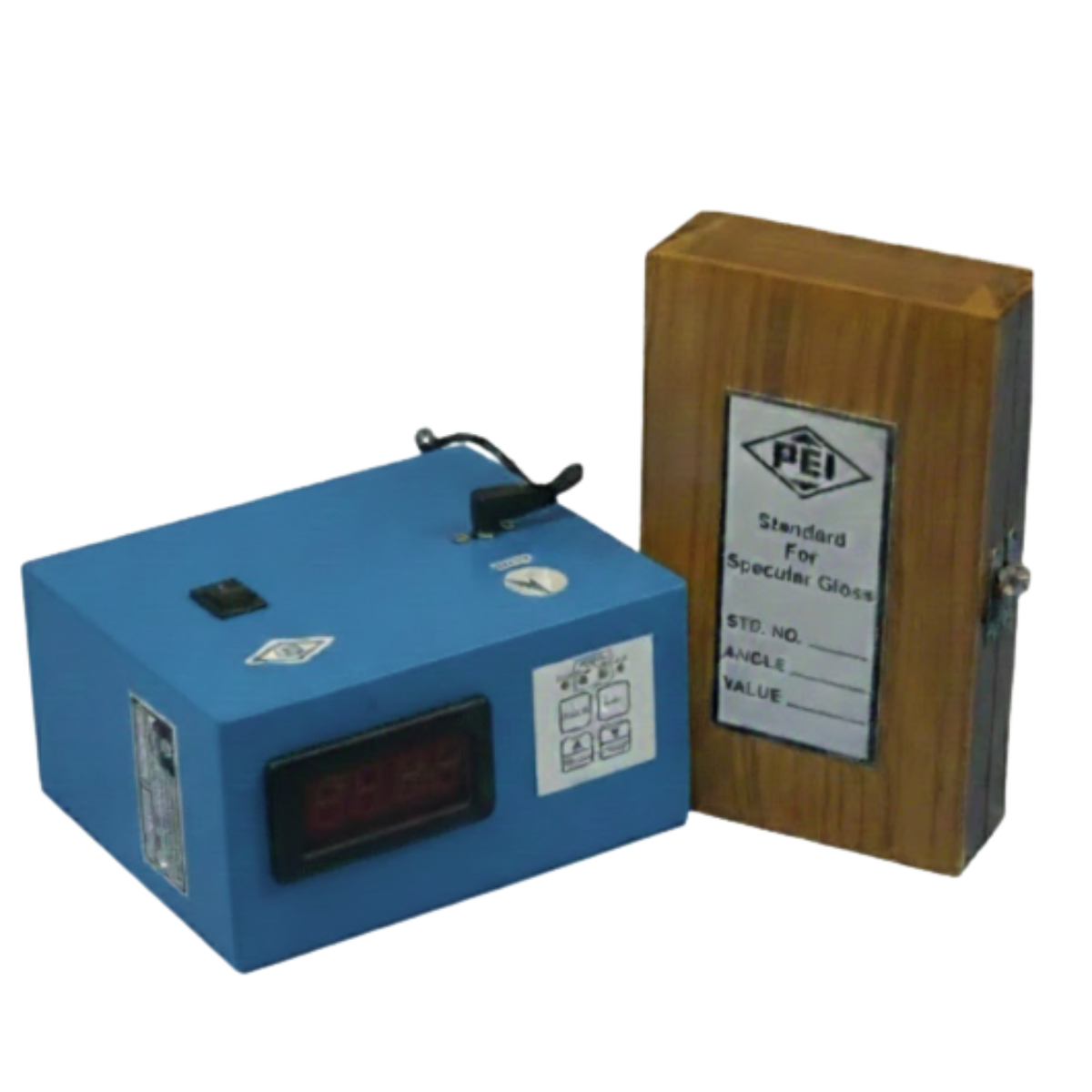

Gloss Meter – Single Angle Models AZA1298
The AZA1298 Single Angle Gloss Meter is a compact, high-precision surface gloss measurement instrument designed for accurate, repeatable, and standardized gloss evaluation in laboratory, production, and field environments. Utilizing a fixed-angle optical geometry, this gloss tester delivers consistent gloss readings in Gloss Units (GU), making it ideal for routine quality control and surface finish verification.
Engineered for ease of use and compliance with international standards, the AZA1298 is widely used across paint, coatings, plastics, wood, packaging, automotive, and furniture industries where surface appearance is critical.
Description
Why Choose a Single Angle Gloss Meter (AZA1298)?
Single-angle gloss meters are best suited for applications where surface reflectivity remains consistent. By focusing on one dedicated geometry, the AZA1298 eliminates unnecessary complexity while maintaining high optical accuracy and repeatability.
Available measuring geometries include:
-
60° – Standard, general-purpose gloss measurement
-
20° – High-gloss finishes (automotive coatings, polished metals)
-
85° – Low-gloss and matte surfaces
This targeted approach ensures reliable results while simplifying operation for production and inspection personnel.
Applications Across Industries
-
Paints & Coatings Manufacturing – Monitor and control gloss consistency
-
Plastic Injection Molding – Verify surface finish of molded components
-
Furniture & Wood Finishing – Evaluate varnished and lacquered surfaces
-
Packaging & Printing – Assess gloss of cartons, labels, and films
-
Automotive & OEM QA – Inspect painted panels and coated parts
The AZA1298 integrates seamlessly into production lines, inspection labs, and field audits, delivering instant and dependable gloss readings.
Smart Operation in a Portable Design
Designed for efficiency and portability, the AZA1298 features a microprocessor-based digital system with a high-contrast backlit LCD. One-button operation ensures usability even for non-technical operators.
Key Operational Features
-
Fast start-up and instant measurement
-
HOLD function to retain readings after removal
-
Averages up to 20 readings for surface consistency
-
Auto power-off for battery conservation
-
Battery low and charging status indicators
-
Lightweight, ergonomic handheld design
Accuracy You Can Trust – Standards Compliance
The AZA1298 conforms to internationally recognized standards:
-
ASTM D523 – Standard Test Method for Specular Gloss
-
ISO 2813 – Paints and varnishes — Determination of gloss value
This compliance makes the instrument suitable for international audits, OEM approvals, and export-oriented manufacturing.
Battery & Connectivity
-
Rechargeable lithium battery with up to 10 hours of continuous operation
-
USB interface for data transfer to PC
-
Supports reporting, QA documentation, and Excel-based analysis
What’s Included
-
AZA1298 Single Angle Gloss Meter (selected geometry)
-
Certified calibration reference tile
-
USB data cable
-
Protective carrying case
-
User manual
Technical Specifications
| Feature | Specification |
|---|---|
| Model | AZA1298 |
| Measurement Geometry | 20° / 45° / 60° (model dependent) |
| Measurement Range | 0–1000 Gloss Units (GU) |
| Resolution | 0.1 GU |
| Accuracy | ±1.0 GU |
| Repeatability | ≤ 0.4 GU |
| Display | Digital LCD with HOLD function |
| Averaging Function | Up to 20 readings |
| Calibration | Manual using certified reference tile |
| Interface | USB data output |
| Power Source | Rechargeable battery |
| Battery Life | Up to 10 hours |
| Dimensions | 150 × 45 × 75 mm |
| Weight | Approx. 300 g |
| Standards Compliance | ASTM D523, ISO 2813 |
Frequently Asked Questions (FAQ)
Q1: Can I choose the measurement angle?
Yes. The AZA1298 is available in fixed-angle variants: 20°, 45°, or 60°, depending on application requirements.
Q2: Which angle is best for automotive finishes?
For high-gloss automotive coatings, the 20° model is recommended. The 60° version is ideal for general-purpose use.
Q3: How often should calibration be performed?
Calibration is recommended before critical measurement sessions. The supplied reference tile ensures quick and reliable calibration.
Q4: Does the meter store and export data?
Yes. Readings can be transferred to a PC via USB for reporting and quality documentation.
Q5: Is this suitable for international quality audits?
Absolutely. The AZA1298 fully complies with ASTM D523 and ISO 2813 standards.
Additional information
| Measuring Angle |
60° (or 20° / 85° models) |
|---|---|
| Measurement Range |
0–1000 Gloss Units (GU) |
| Resolution |
0.1 GU |
| Accuracy |
±1.0 GU |
You may also like…
Advanced Triaxial Test System (UU–CU–CD Capable) (AZA 1296)
- UU–CU–CD test modes for complete soil strength profiling
- Automated control of pressure, load, and drainage
- Compatible with clay, silt, sand, and mixed soils
- Integrated data acquisition and real-time graphing
- Meets ASTM D2850, D4767, BS1377, AASHTO standards
- Ideal for geotechnical, research, and academic use
Air Bag Trainer AZA1246
The AZA1246 AZALAB Air Bag Trainer is a comprehensive educational training platform designed to demonstrate the structure, operation, diagnostics, and fault analysis of modern automotive airbag systems, also known as Supplemental Restraint Systems (SRS). Built using OEM automotive components, this trainer delivers a realistic learning experience while maintaining complete operational safety.
This system is ideally suited for automotive engineering colleges, ITIs, polytechnic institutes, vocational training centers, and service technician programs, enabling both theoretical instruction and hands-on diagnostics practice.
Alternator Trainer AZA1247
The AZA1247 AZALAB Alternator Trainer is a hands-on automotive electrical training system designed to demonstrate the working principles, construction, and diagnostics of an automotive alternator with external voltage regulation. Built using OEM automotive components, this trainer provides a realistic and safe learning platform for students, technicians, and trainees to understand vehicle charging systems in depth.
This system is ideal for automotive engineering institutes, ITIs, polytechnics, vocational training centers, and service technician programs, supporting both theoretical instruction and practical experimentation.
Arc Welding Machine AZA1234
The AZA1234 Arc Welding Machine by A Z A Lab is a high-performance industrial welding solution engineered for demanding fabrication, maintenance, and structural welding applications. Designed using advanced inverter technology, this machine delivers superior arc stability, high efficiency, and reliable welding performance across a wide range of electrode types and materials.
With an inverter frequency of up to 20 kHz, the AZA1234 ensures fast dynamic response, reduced spatter, and excellent weld bead appearance. Its robust electrical design supports a high duty cycle, allowing continuous operation under heavy loads while maintaining consistent welding output—even with output cable lengths of up to 100 meters.
AutoDist‑86 Glass Distillation AZA1282
AutoDist-86 Glass Distillation Unit – AZA1282
The AutoDist-86 Glass Distillation Unit (Model: AZA1282) from AZA Lab is a high-performance laboratory water distiller engineered for the consistent production of ultra-pure distilled water. Manufactured entirely from high-grade borosilicate 3.3 glass, this unit delivers exceptional chemical resistance, thermal stability, and long-term durability, making it ideal for scientific, medical, pharmaceutical, and academic laboratories.
Designed for reliability and purity, the AZA1282 ensures contamination-free distillation without the risk of metallic ion leaching common in metal-bodied stills.
AutoFlash – Automated Abel Flash Point Analyzer AZA1277
The AutoFlash-1277 (Model: AZA1277) from AZA Lab is a fully automated, microcontroller-based Abel Flash Point Analyzer designed for accurate, safe, and repeatable determination of flash points of combustible liquids. Engineered to meet stringent international testing requirements, this advanced instrument conforms to IP 170, ISO 13736, and IS 1448 (Part 20) standards.
Covering a standard temperature range of –30°C to 70°C, extendable up to 110°C, the AZA1277 is ideally suited for laboratories involved in petroleum testing, petrochemical quality control, fuels research, and regulatory compliance.
Related products
Abrasion Testing Machine for Glazed Tiles AZA1261
The AZA LAB Abrasion Testing Machine for Glazed Tiles (AZA1261) is a precision-engineered laboratory instrument designed for the accurate determination of abrasion resistance in glazed ceramic tiles. Fully compliant with BIS 13630-11 and EN ISO 10545-7, this machine is essential for evaluating tile durability and surface wear performance in accordance with international quality standards.
The AZA1261 simulates real-world foot traffic and surface wear conditions, enabling manufacturers, testing laboratories, and quality control departments to verify that glazed tiles maintain their appearance, texture, and integrity even under high-traffic usage.
Abrasion Testing Machine for Glazed Tiles AZA1262
The AZA LAB Abrasion Testing Machine for Glazed Tiles (AZA1262) is a robust, high-performance laboratory instrument engineered for precise and high-speed abrasion resistance testing of glazed ceramic tiles. Fully compliant with BIS 13630-11 and EN ISO 10545-7, this machine is designed to ensure reliable evaluation of tile durability under simulated real-world wear conditions.
With the capability to test up to four specimens simultaneously, the AZA1262 significantly improves testing efficiency while maintaining exceptional accuracy and repeatability—making it ideal for tile manufacturers, certification laboratories, and quality control departments
Ball Release for Impact Resistance Tester AZA1295
The AZA LAB Ball Release for Impact Resistance Tester (AZA1295) is a precision-engineered laboratory accessory designed to deliver accurate, repeatable, and standardized ball drop impact testing for a wide range of materials. It is an essential component of drop weight impact testing systems used in research & development, quality control, compliance testing, and academic laboratories.
This device ensures controlled release of a weighted ball from a defined height, eliminating operator variability and guaranteeing consistent impact energy in every test. The AZA1295 is widely used to evaluate impact strength, puncture resistance, and breakage behavior of materials under sudden mechanical stress.

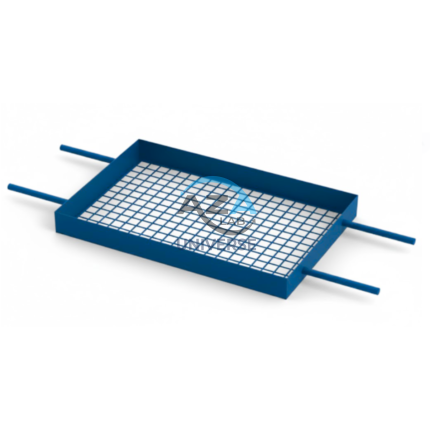

BALLAST SIEVE – 100 x 70 x 10 cm – 65 mm AZA1299
